Product Summary

The TSL0808RA-220K1R7-PF is a Radial Lead Inductor(Coil) For Power Line. It is suitable for Televisions, VCRs, personal computers, and other electronic equipment.

Parametrics

TSL0808RA-220K1R7-PF absolute maximum ratings: (1)Operating temperature range: –40 to +85℃; (2)Storage temperature range: –40 to +85℃; (3)Terminal tensile strength: 9.8N min; (4)Flow soldering condition: 260℃ /10 seconds.

Features

TSL0808RA-220K1R7-PF features: (1)The TSL series feature low DC resistance and high current handling capacities, making them ideal for power supply line applications; (2)These parts are manufactured to a high degree of dimensional accuracy using non-flammable material (UL94V-0); (3)Available in tape packaging to support automated mounting machines; (4)It is a product conforming to RoHS directive.

Diagrams

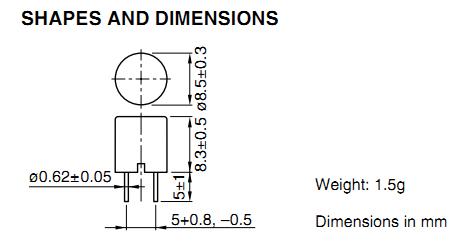

TSL0808RA-220K1R7-PF dimenisons

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
TSL0808RA-220K1R7-PF
TSL0808RA-220K1R7-PF
TDK
Power Inductors 22uH 1.7A
Data Sheet
0-1: $1.08
1-50: $0.81
50-100: $0.72
100-500: $0.54
500-1000: $0.31
