Product Summary
The TPS76325DBVR is a low-dropout (LDO) voltage regulator which offers the benefits of low-dropout voltage, low-power operation, and miniaturized packaging. This regulator features low dropout voltages and quiescent currents compared to conventional LDO regulators. Offered in a 5-terminal, small outline integrated-circuit SOT-23 package, the TPS76325DBVR is ideal for cost-sensitive designs and for applications where board space is at a premium.
Parametrics
TPS76325DBVR absolute maxing ratings: (1)Input voltage range: -0.3 V to 10 V; (2)Voltage range at EN: -0.3 V to VI + 0.3 V; (3)Voltage on OUT, FB: 7 V; (4)Peak output current: Internally limited; (5)ESD rating, HBM: 2 kV; (6)Operating junction temperature range, TJ: -40℃ to 150℃; (7)Storage temperature range, Tstg: -65℃ to 150℃.
Features
TPS76325DBVR features: (1)150-mA Low-Dropout Regulator; (2)Output Voltage: 5 V, 3.8 V, 3.3 V, 3.0 V, 2.8 V, 2.7 V, 2.5 V, 1.8 V, 1.6 V and Variable; (3)Dropout Voltage, Typically 300 mV at 150 mA; (4)Thermal Protection; (5)Over Current Limitation; (6)Less Than 2-μA Quiescent Current in Shutdown Mode; (7)40℃ to 125℃ Operating Junction Temperature Range; (8)5-Pin SOT-23 (DBV) Package.

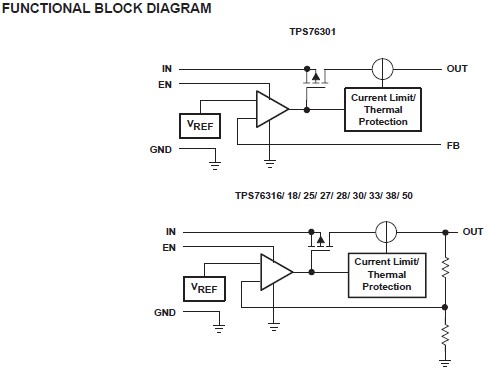

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 TPS76325DBVR |
Texas Instruments |
Low Dropout (LDO) Regulators 2.5V 150mA LDO |
Data Sheet |
|
|
||||||||||||
|
TPS76325DBVRG4 |
Texas Instruments |
Low Dropout (LDO) Regulators Low-Power 150-mA |
Data Sheet |
|
|
||||||||||||
