Product Summary

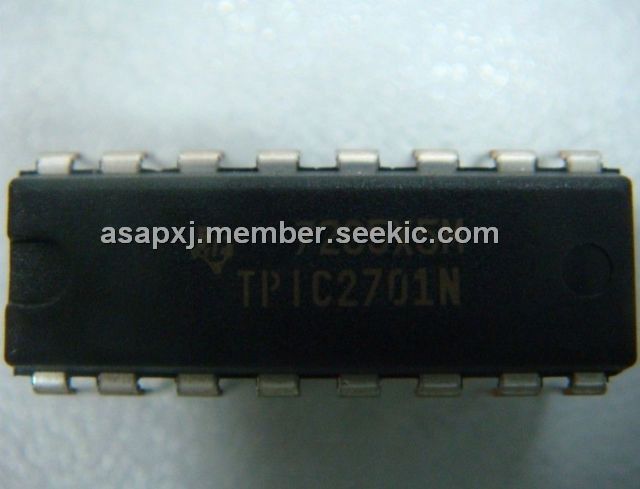

The TPIC2701N is a monolithic power DMOS transistor array that consists of seven independent N-channel enhancement-mode DMOS transistors connected in a common-source configuration with open drains. The TPIC2701N is pin-for-pin functionally compatible with the Texas Instruments ULN2001A through ULN2004A. The TPIC2701N is characterized for operation over a temperature range of 0℃ to 125℃.

Parametrics

TPIC2701N absolute maximum ratings: (1)Drain-source voltage, VDS: 60 V; (2)Gate-source voltage, VGS: ±20 V; (3)Clamp-drain voltage, VCD: 60 V ; (4)Continuous source-drain diode current: 0.5 A; (5)Pulsed drain current, each output, ID: 3 A; (6)Pulsed clamp current, ICL: 3 A; (7)Continuous drain current, each output, all outputs on: 0.5 A; (8)Single-pulse avalanche energy, EAS: 22 mJ; (9)Operating virtual junction temperature range, TJ: –40 to 150℃; (10)Operating case temperature range, TC: –40 to 125℃; (11)Storage temperature range, Tstg: –65 to 150℃; (12)Lead temperature 1,6 mm (1/16 inch) from case for 10 seconds: 260℃.

Features

TPIC2701N features: (1)Seven 0.5-A Independent Output Channels; (2)Integrated Clamp Diode With Each Output; (3)Low rDS(on): 0.5Ω Typical; (4)Output Voltage: 60 V; (5)Pulsed Current: 3 A Per Channel; (6)Avalanche Energy: 22 mJ.

Diagrams

TPIC2701N logic diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
TPIC2701N
TPIC2701N

7 CHANNEL COMMON SOURCE DRIVER
Data Sheet
Negotiable
