TMS320F2808PZQ

Digital Signal Processor, 100 MHz, 100-LQFP, 100MIPS, ± 20 mA, TMS320F2808PZQ

Rated 5 Rating 5 | reviews | Write a review

Price:: US $23.80~24.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $23.80~24.00

PartNumber:: TMS320F2808PZQ

Brand:: Texas Instruments - TI | Pack: QFP | D/C: 11+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Ella Wu's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-07-13

From Other Seller

Part Number:TMS320F2808PZQ
US $23.80 - 24.00
TMS320C6414TBGLZA7

US $58.00 - 65.00 / Piece
(0) Remove
HEF4093BT

US $0.15 - 1.20 / Piece
(0) Remove
Quantity:

piece

Product Summary

The TMS320F2808PZQ is a Digital Signal Processor. It is a highly integrated, high-performance solution for demanding control application.

Parametrics

TMS320F2808PZQ absolute maximum ratings: (1)Supply voltage range, V DDIO , V DD3VFL:- 0.3 V to 4.6 V; (2)Supply voltage range, V DDA2 , V DDAIO:- 0.3 V to 4.6 V; (3)Supply voltage range, V DD:- 0.3 V to 2.5 V; (4)Supply voltage range, V DD1A18 , V DD2A18:- 0.3 V to 2.5 V; (5)Supply voltage range, V SSA2 , V SSAIO , V SS1AGND , V SS2AGND:-0.3 V to 0.3 V; (6)Input voltage range, V IN:- 0.3 V to 4.6 V; (7)Output voltage range, V O:- 0.3 V to 4.6 V; (8)Input clamp current, I IK (V IN < 0 or V IN > V DDIO ):± 20 mA; (9)Output clamp current, I (V < 0 or V > V ):± 20 mA; (10)Junction temperature range:- 40℃ to 150℃; (11)Storage temperature range:- 65℃ to 150℃.

Features

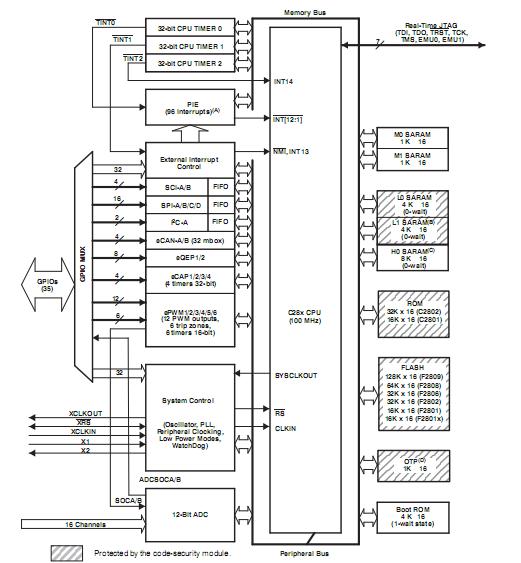

TMS320F2808PZQ features: (1)High-Performance Static CMOS Technology; (2)JTAG Boundary Scan Support; (3)High-Performance 32-Bit CPU; (4)On-Chip Memory; (5)Clock and System Control; (6)Any GPIO A Pin Can Be Connected to One of the Three External Core Interrupts; (7)Peripheral Interrupt Expansion (PIE) Block That Supports All 43 Peripheral Interrupts; (8)128-Bit Security Key/Lock; (9)Enhanced Control Peripherals; (10)Three 32-Bit CPU Timers; (11)Serial Port Peripherals; (12)12-Bit ADC, 16 Channels; (13)Advanced Emulation Features.
