Product Summary
The TLC272CDR precision dual operational amplifier combines a wide range of input offset voltage grades with low offset voltage drift, high input impedance, low noise, and speeds approaching that of general-purpose BiFET devices. The TLC272CDR uses Texas instruments silicon-gate LinCMOSE technology, which provides offset voltage stability far exceeding the stability available with conventional metal-gate processes.
Parametrics
TLC272CDR absolute maxing ratings: (1)Supply voltage, VDD: 18 V; (2)Differential input voltage, VID: ±VDD; (3)Input voltage range, VI (any input): –0.3 V to VDD; (4)Input current, II: ±5 mA; (5)output current, IO (each output): ±30 mA; (6)Total current into VDD: 45 mA; (7)Total current out of GND: 45 mA; (8)Storage temperature range: -65℃ to 150℃; (9)Case temperature for 60 seconds: FK package: 260℃; (10)Lead temperature 1,6 mm (1/16 inch) from case for 10 seconds: D, P, or PW package: 260℃; (11)Lead temperature 1,6 mm (1/16 inch) from case for 60 seconds: JG package: 300℃.
Features
TLC272CDR features: (1)Input Offset Voltage Drift, Typically 0.1 mV/Month, Including the First 30 Days; (2)Single-Supply Operation; (3)Common-Mode Input Voltage Range Extends Below the Negative Rail (C-Suffix, I-Suffix types); (4)Low Noise, Typically 25 nV/√Hz￣ at f = 1 kHz; (5)Output Voltage Range Includes Negative Rail; (6)High Input impedance, 1000000000000Ω Typ; (7)ESD-Protection Circuitry; (8)Small-Outline Package Option Also Available in Tape and Reel; (9)Designed-in Latch-Up Immunity.

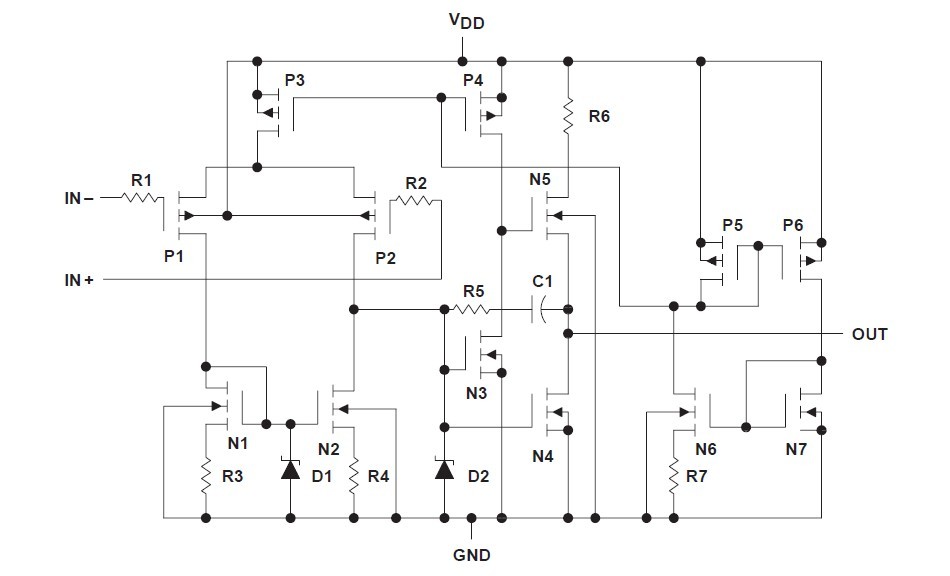

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 TLC272CDR |
Texas Instruments |
Operational Amplifiers - Op Amps Dual Prec Op Amp |
Data Sheet |
|
|
||||||||||||
|
TLC272CDRG4 |
Texas Instruments |
Operational Amplifiers - Op Amps Dual Single Supply Op Amp |
Data Sheet |
|
|
||||||||||||
