Product Summary

The SN75ALS173NSR is a monolithic quadruple differential line receiver with 3-state outputs. It is designed to meet the requirements of ANSI Standards EIA/TIA-422-B, EIA/TIA-423-B, RS-485, and several ITU recommendations. Advanced low-power Schottky technology provides high speed without the usual power penalty. The four receivers have an ORed pair of enables in common. Either G high or G low enables all of the receivers. The SN75ALS173NSR features high input impedance, input hysteresis for increased noise immunity, and input sensitivity of ±200 mV over a common-mode input voltage range of –12 V to 12 V.

Parametrics

SN75ALS173NSR absolute maximum ratings: (1)Supply voltage, VCC: 7 V; (2)Input voltage, VI (A or B inputs): ±14 V; (3)Differential input voltage, VID: ±14 V; (4)Enable input voltage, VI: 7 V; (5)Low-level output current, IOL: 50 mA; (6)Continuous total dissipation: See Dissipation Rating Table; (7)Operating free-air temperature range, TA: 0℃ to 70℃; (8)Storage temperature range, Tstg: –65℃ to 150℃; (9)Lead temperature 1,6 mm (1/16 inch) from case for 10 seconds : 260℃.

Features

SN75ALS173NSR features: (1)Meets or Exceeds the Requirements of ITU Recommendations V.10, V.11, X.26, and X.27; (2)Designed for Multipoint Bus Transmission on Long Bus Lines in Noisy Environments; (3)3-State Outputs; (4)Common-Mode Input Voltage Range of –12 V to 12 V; (5)Input Sensitivity ±200 mV; (6)Input Hysteresis 50 mV Typ; (7)High Input Impedance 12 kW Min; (8)Operates From Single 5-V Supply; (9)Low Supply-Current Requirement 27 mA Max.

Diagrams

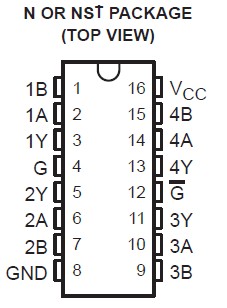

SN75ALS173NSR circuit diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity

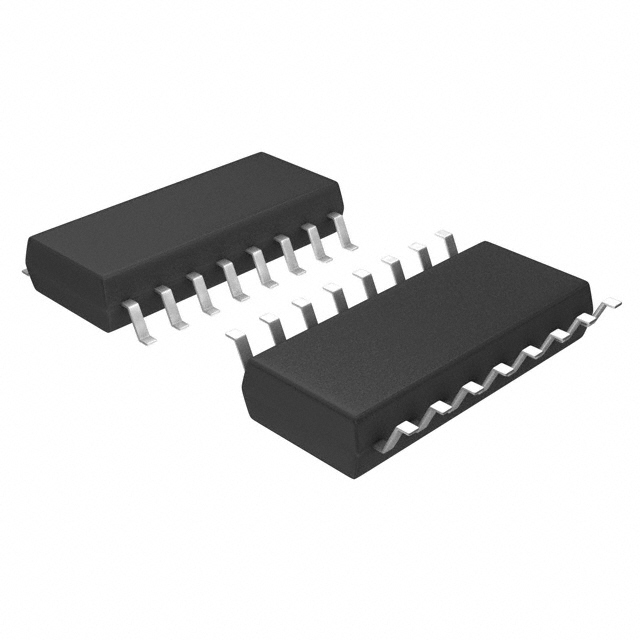

SN75ALS173NSR
SN75ALS173NSR

Texas Instruments

Buffers & Line Drivers Quadruple Diff Line Receiver

Data Sheet

0-1485: $1.30
1485-2000: $1.25
2000-5000: $1.20
SN75ALS173NSRE4
SN75ALS173NSRE4

Texas Instruments

Bus Receivers Quadruple Diff Line Receiver

Data Sheet

0-1485: $1.30
1485-2000: $1.25
2000-5000: $1.20
SN75ALS173NSRG4
SN75ALS173NSRG4

Texas Instruments

RS-485 Interface IC Quad Differential Line Driver

Data Sheet

0-1485: $1.30
1485-2000: $1.25
2000-5000: $1.20
