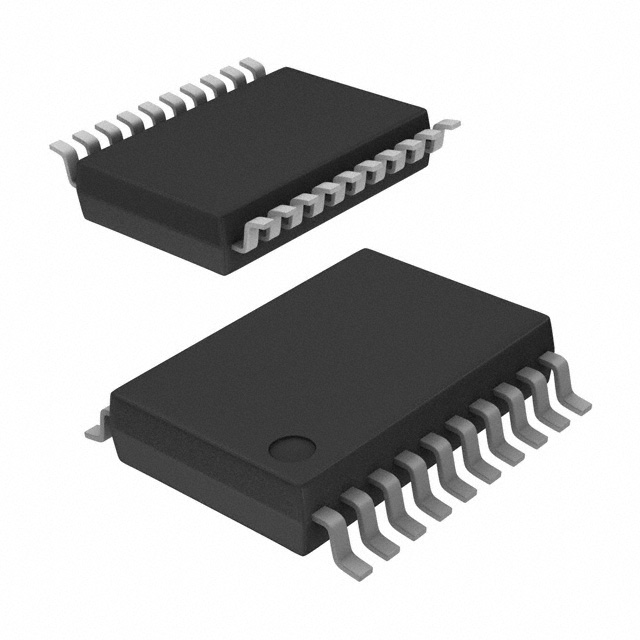

SN74LVC245ADBRG4

SN74LVC245ADBRG4, BUS transceiver, 20SSOP, 6.5V, 50mA, ±100mA, Texas Instruments

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.31~0.31 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.31~0.31

PartNumber:: SN74LVC245ADBRG4

Brand:: Texas Instruments - TI | Pack: SSOP | D/C: 11+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Ella Wu's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-10-09

From Other Seller

Part Number:SN74LVC245ADBRG4
US $0.31 - 0.31
AT45DB161D-SU

US $1.50 - 3.50 / Piece
(0) Remove
AD595AD

US $7.00 - 9.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

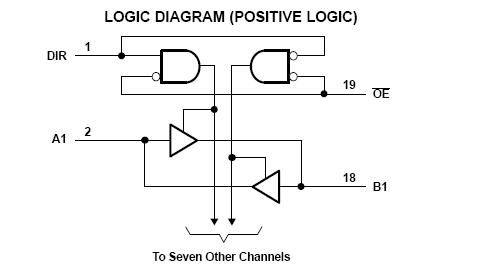

The SN74LVC245ADBRG4 is an octal BUS transceiver with 3-state outputs. The SN74LVC245ADBRG4 is designed for asynchronous communication between data buses. The device transmits data from the A bus to the B bus or from the B bus to the A bus, depending on the logic level at the direction-control (DIR) input. The output-enable (OE) input can be used to disable the SN74LVC245ADBRG4 so the bus effectively is isolated.

Parametrics

SN74LVC245ADBRG4 absolute maximum ratings: (1)Supply voltage range, VCC: -0.5 to 6.5 V; (2)Input voltage range, VI: -0.5 to 6.5 V; (3)Voltage range applied to any output in the high-impedance or power-off state, VO: -0.5 to 6.5 V; (4)Voltage range applied to any output in the high or low state, VO: -0.5 to VCC + 0.5 V; (5)Input clamp current, VI < 0, IlK: -50mA; (6)Output clamp current, VO < 0, IOK: -50mA; (7)Continuous output current, IO: ±50mA; (8)Continuous current through: ±100mA; (9)Package thermal impedance, DB package: 70℃/W; (10)Storage temperature range, Tstg: -65 to 150℃.

Features

SN74LVC245ADBRG4 features: (1)Operates From 1.65 V to 3.6 V; (2)Inputs Accept Voltages to 5.5 V; (3)Max tpd of 6.3 ns at 3.3 V; (4)Typical VOLP (Output Ground Bounce) <0.8 V at VCC = 3.3 V, TA = 25℃; (5)Typical VOHV (Output VOH Undershoot) >2 V at VCC = 3.3 V, TA = 25℃; (6)Ioff Supports Partial-Power-Down Mode Operation; (7) Supports Mixed-Mode Signal Operation on All Ports (5-V Input/Output Voltage with 3.3-V VCC); (8) Latch-Up Performance Exceeds 250mA Per JESD 17; (9) ESD Protection Exceeds JESD 22: 2000-V Human-Body Model (A114-A), 1000-V Charged-Device Model (C101).
