Product Summary

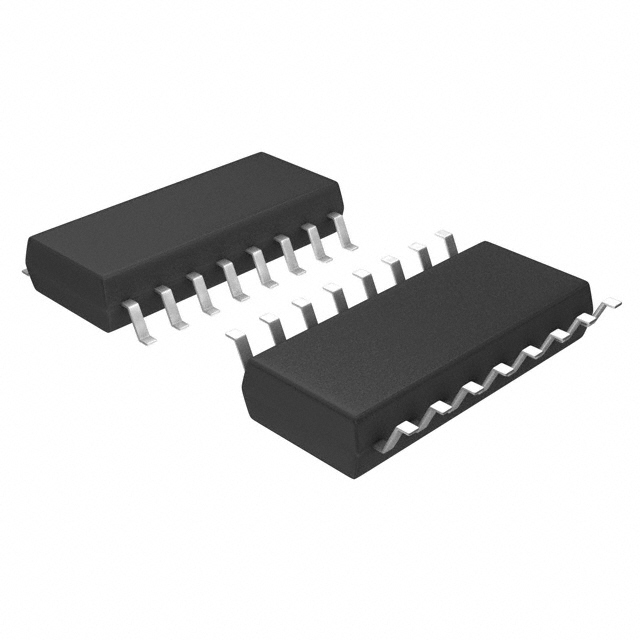

The SN74LS259BNSR is an 8-bit addressable latch. The SN74LS259BNSR is designed for general purpose storage applications in digital systems. Specific uses of the SN74LS259BNSR include working registers, serial-holding registers, and active-high decoders or demultiplexers. They are multifunctional devices capable of storing single-line data in eight addressable latches, and being a 1-of-8 decorder or demultiplexer with active-high outputs.
Parametrics
SN74LS259BNSR absolute maximum ratings: (1)Supply voltage: 7V; (2)Input voltage: 5.5V; (3)Operating free-air temperature range: 0℃ to 70℃; (4)Storage temperature range: -65℃ to 150℃.
Features
SN74LS259BNSR features: (1)8-bit parallel-Out Storage Register Performs; (2)Asynchronous Parallel Clear; (3)Active High Decoder; (4)Enable/Disable Input Simplified Expansion; (5)Expandable for N-bit Applications; (6)Four District Functional Modes; (7)Package Options Include Ceramic Chip Carriers and Flat Packages in Addition to Plastic and Ceramic DIPs; (8)Dependable Texas Instruments Quality and Reliability.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 SN74LS259BNSR |
Texas Instruments |
Latches Octal addressable Latches |
Data Sheet |
Negotiable |
|
||||
|
SN74LS259BNSRE4 |
Texas Instruments |
Latches Octal addressable Latches |
Data Sheet |
Negotiable |
|
||||
|
SN74LS259BNSRG4 |
Texas Instruments |
Latches Octal addressable latches |
Data Sheet |
Negotiable |
|
||||
