Product Summary

The SN74LS07DR hex buffer/driver features high-voltage open-collector outputs to interface with high-level circuits or for driving high-current loads. It is also characterized for use as buffers for driving TTL inputs. The SN74LS07DR has a rated output voltage of 30 V. The maximum sink current is 40 mA for the SN74LS07DR.

Parametrics

SN74LS07DR absolute maximum ratings: (1)Supply voltage, VCC: 7 V; (2)Input voltage, VI: 7 V; (3)Output voltage, VO: 30 V; (4)Package thermal impedance, θJA: D package: 86℃/W, DB package: 96℃/W, N package: 80℃/W, NS package: 76℃/W; (5)Storage temperature range,Tstg: -65℃ to 150℃.

Features

SN74LS07DR features: (1)Convert TTL Voltage Levels to MOS Levels; (2)High Sink-Current Capability; (3)Input Clamping Diodes Simplify System Design; (4)Open-Collector Driver for Indicator Lamps and Relays.

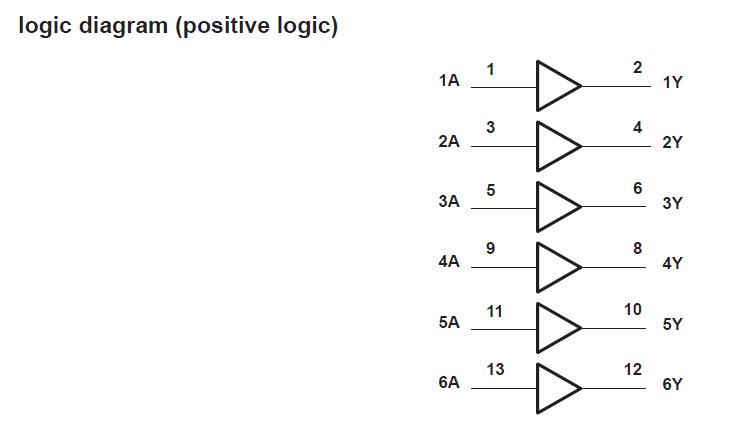

Diagrams

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
SN74LS07DR
SN74LS07DR

Texas Instruments

Buffers & Line Drivers Hex W/ OC HV Out

Data Sheet

0-1: $0.49
1-25: $0.44
25-100: $0.39
100-250: $0.34
SN74LS07DRE4
SN74LS07DRE4

Texas Instruments

Buffers & Line Drivers Hex Buffer/Driver

Data Sheet

0-1750: $0.23
1750-2000: $0.21
2000-2500: $0.21
2500-5000: $0.20
SN74LS07DRG4
SN74LS07DRG4

Texas Instruments

Buffers & Line Drivers Hex Inverter Drivers

Data Sheet

0-1750: $0.23
1750-2000: $0.21
2000-2500: $0.21
2500-5000: $0.20
