Product Summary

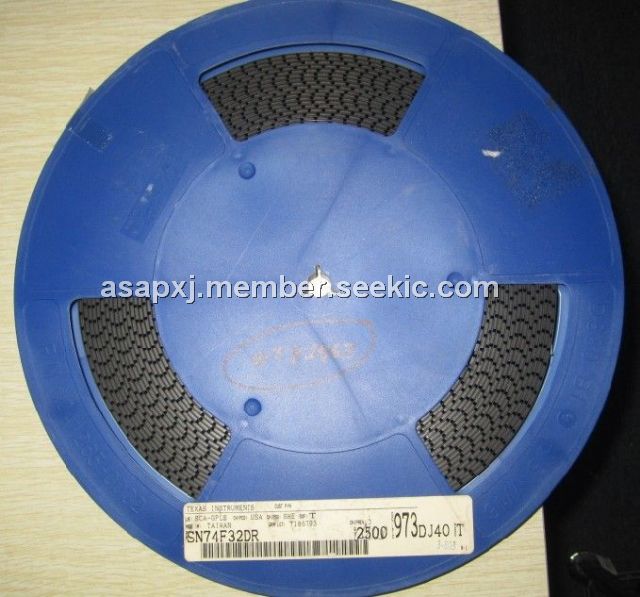

The SN74F32DR is a quadruple 2-input positive-or gate. It contains four independent 2-input OR gates. The SN74F32DR performs the Boolean functions Y=A+B or Y=A×B in positive logic. The SN74F32DR is characterized for operation over the full military temperature range of 0℃ to 70℃.
Parametrics
SN74F32DR absolute maximum ratings: (1)Supply voltage range, VCC:–0.5V to 7V; (2)Input voltage range, VI:–1.2V to 7V; (3)Input current range:–30mA to 5mA; (4)Voltage range applied to any output in the high state:–0.5V to VCC; (5)Current into any output in the low state: 40mA; (6)Package thermal impedance, θJA: 127℃/W; (7)Storage temperature range, Tstg:–65℃ to 150℃.
Features
SN74F32DR features: Package Options Include Plastic Small-Outline (D) Packages, Ceramic Chip Carriers (FK), and Standard Plastic (N) and Ceramic (J) DIPs.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 SN74F32DR |
Texas Instruments |
Gates (AND / NAND / OR / NOR) Quad 2-input Positive-OR gates |
Data Sheet |
|
|
||||||||||||
|
SN74F32DRE4 |
Texas Instruments |
Gates (AND / NAND / OR / NOR) Quad 2-input Positive-OR gates |
Data Sheet |
|
|
||||||||||||
|
SN74F32DRG4 |
Texas Instruments |
Gates (AND / NAND / OR / NOR) Quad 2-input Positive-OR gates |
Data Sheet |
|
|
||||||||||||
