SN74AVCB164245GR

16-bit noninverting bus transceiver, 48TSSOP, 1.4V to 3.6V, ±24 mA

Rated 5 Rating 5 | reviews | Write a review

Price:: US $1.11~1.11 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $1.11~1.11

PartNumber:: SN74AVCB164245GR

Brand:: Texas Instruments - TI | Pack: TSSOP | D/C: 11+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Ella Wu's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-07-13

From Other Seller

Part Number:SN74AVCB164245GR
US $1.11 - 1.11
ECA1HHG4R7

US $10.00 - 10.00 / Piece
(0) Remove
SLA4060

US $0.80 - 1.20 / Piece
(0) Remove
Quantity:

piece

Product Summary

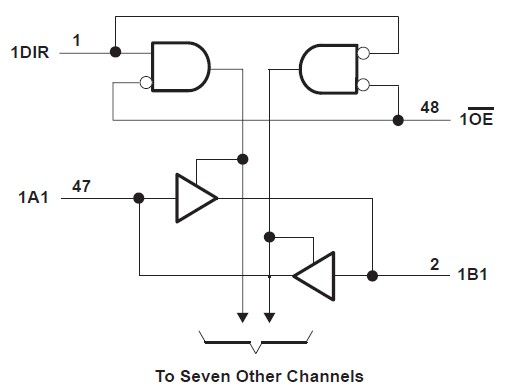

The SN74AVCB164245GR is a 16-bit (dual-octal) noninverting bus transceiver. It uses two separate configurable power-supply rails. The A port is designed to track VCCA. VCCA accepts any supply voltage from 1.4 V to 3.6 V. The B port is designed to track VCCB. VCCB accepts any supply voltage from 1.4 V to 3.6 V. The SN74AVCB164245GR is designed for asynchronous communication between data buses. The SN74AVCB164245GR transmits data from the A bus to the B bus or from the B bus to the A bus, depending on the logic level at the direction-control (DIR) input.

Parametrics

SN74AVCB164245GR absolute maximum ratings: (1)Supply voltage range, VCCA and VCCB: -0.5 V to 4.6 V; (2)Input voltage range, VI: I/O ports (A port): -0.5 V to 4.6 V, I/O ports (B port): -0.5 V to 4.6 V, Control inputs: -0.5 V to 4.6 V; (3)Voltage range applied to any output in the high-impedance or power-off state, VO: (A port): -0.5 V to 4.6 V; (B port): -0.5 V to 4.6 V; (4)Input clamp current, IIK (VI < 0): -50 mA; (5)Output clamp current, IOK (VO < 0): -50 mA; (6)Continuous output current, IO: ±50 mA; (7)Continuous current through VCCA, VCCB, or GND: ±100 mA; (8)Storage temperature range, Tstg: -65℃ to 150℃.

Features

SN74AVCB164245GR features: (1)Member of the Texas Instruments Widebus Family; (2)DOC Circuitry Dynamically Changes Output Impedance, Resulting in Noise Reduction Without Speed Degradation; (3)Dynamic Drive Capability Is Equivalent to Standard Outputs With IOH and IOL of ±24 mA at 2.5-V VCC; (4)Control Inputs VIH/VIL Levels are Referenced to VCCB Voltage; (5)If Either VCC Input Is at GND, Both Ports Are in the High-Impedance State; (6)Overvoltage-Tolerant Inputs/Outputs Allow Mixed-Voltage-Mode Data Communications; (7)Ioff Supports Partial-Power-Down Mode Operation; (8)Fully Configurable Dual-Rail Design Allows Each Port to Operate Over the Full 1.4-V to 3.6-V Power-Supply Range.
