Product Summary
The SN74ALS74ADR is a dual Positive-Edge-Triggered D-type flip-flop with clear AND preset. The SN74ALS74ADR contains two independent positive-edge-triggered D-type flip-flops. A low level at the preset (PRE) or clear (CLR) inputs sets or resets the outputs regardless of the levels of the other inputs. When PRE and CLR are inactive (high), data at the data (D) input meeting the setup-time requirements are transferred to the outputs on the positive-going edge of the clock (CLK) pulse. Clock triggering occurs at a voltage level and is not directly related to the rise time of CLK. Following the hold-time interval, data at the D input can be changed without affecting the levels at the outputs. The SN74ALS74ADR is characterized for operation over the full military temperature range of 0℃ to 70℃.
Parametrics
SN74ALS74ADR absolute maximum ratings: (1)Supply voltage, VCC: 7V; (2)Input voltage, VI: 7V; (3)Operating free-air temperature range, TA: 0℃ to 70℃; (4)Storage temperature range: -65℃ to 150℃.
Features
SN74ALS74ADR feature: Package Options Include Plastic Small-Outline (D) Packages, Ceramic Chip Carriers (FK), and Standard Plastic (N) and Ceramic (J) 300-mil DIPs.

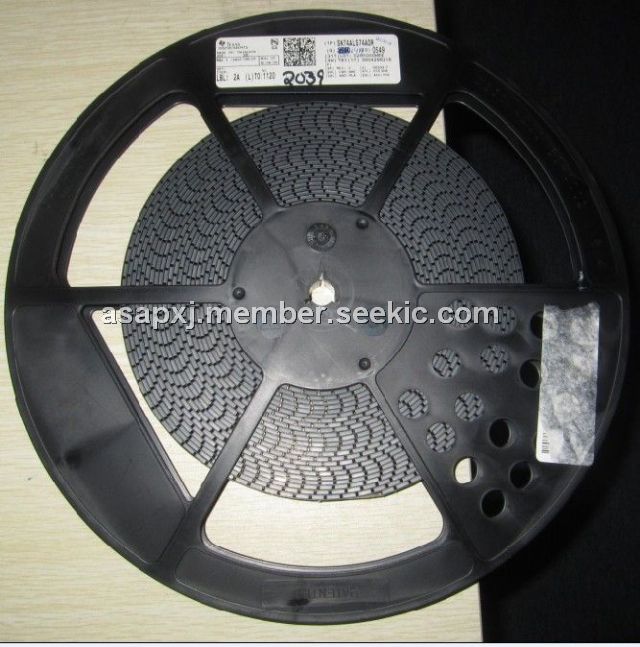

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 SN74ALS74ADR |
Texas Instruments |
Flip Flops Dual |
Data Sheet |
|
|
||||||||||||
|
SN74ALS74ADRE4 |
Texas Instruments |
Flip Flops Dual Pos-Edge-Trig D-Type Flip-Flop |
Data Sheet |
|
|
||||||||||||
|
SN74ALS74ADRG4 |
Texas Instruments |
Flip Flops Dual Pos-Edge-Trig D-Type Flip-Flop |
Data Sheet |
|
|
||||||||||||
