Product Summary
The SN74ALS667NT is an 8-bit D-type transparent latch. It is designed specifically for storing the contents of the input data bus, plus reading back the stored data onto the input data bus. In addition, the SN74ALS667NT provides a 3-state buffer-type output and are easily utilized in bus-structured applications.
Parametrics
SN74ALS667NT absolute maximum ratings: (1)Supply voltage, VCC: 7 V; (2)Input voltage, VI (all inputs except D inputs): 7 V; (3)Voltage applied to D inputs and to disabled 3-state outputs: 5.5 V; (4)Operating free-air temperature range, TA: 0 to 70℃; (5)Storage temperature range –65 to 150℃.
Features
SN74ALS667NT features: (1)3-State I/O-Type Read-Back Inputs; (2)Bus-Structured Pinout; (3)Choice of True or Inverting Logic; (4)Preset and Clear Inputs; (5)Package Options Include Plastic; (6)Small-Outline (DW) Packages and Standard; (7)Plastic (NT) 300-mil DIPs.

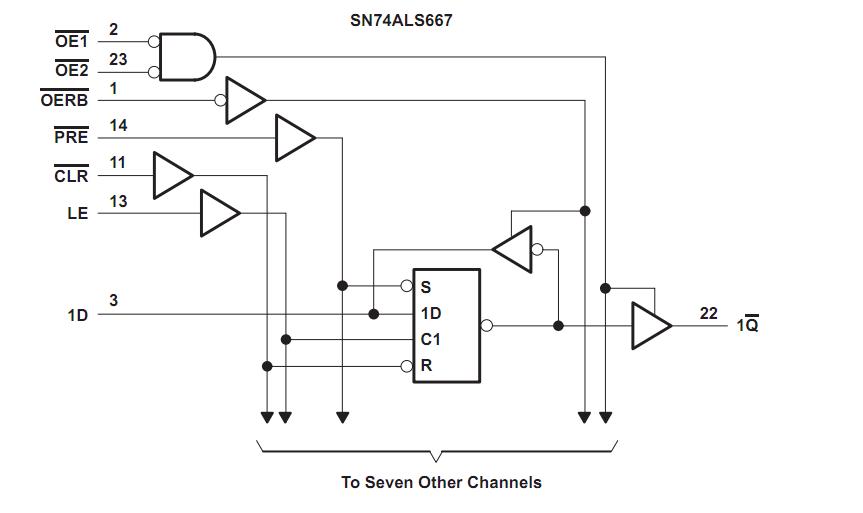

Diagrams

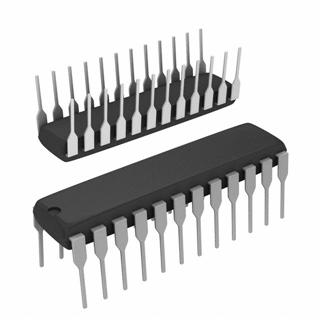

| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 SN74ALS667NT |
Texas Instruments |
Latches Octal DType TRANPNT Read Back Latches |
Data Sheet |
|
|
||||||||||||
|
SN74ALS667NTE4 |
Texas Instruments |
Latches Octal DType TRANPNT Read Back Latches |
Data Sheet |
|
|
||||||||||||
