SI9433DY-T1

P-Channel 20-V (D-S) MOSFET, ±5.4 A, 2.5 W, SOP8, SI9433DY-T1

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.16~0.16 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.16~0.16

PartNumber:: SI9433DY-T1

Brand:: Vishay Siliconix - vishay | Pack: SOP | D/C: 11+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Ella Wu's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-08-13

From Other Seller

Part Number:SI9433DY-T1
US $0.16 - 0.16
ECA1HHG4R7

US $10.00 - 10.00 / Piece
(0) Remove
ECA1HHG220

US $2.00 - 10.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

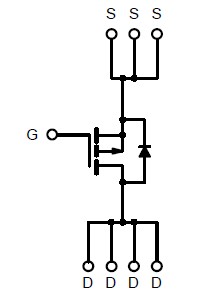

The SI9433DY-T1 is a P-Channel 20-V (D-S) MOSFET.

Parametrics

SI9433DY-T1 absolute maxing ratings: (1)Drain-Source Voltage VDS: -20 V; (2)Gate-Source Voltage VGS: ±12 V; (3)Continuous Drain Current (TJ = 150℃) TA = 25℃ ID: ±5.4 A; (4)Pulsed Drain Current IDM: ±20 A; (5)Continuous Source Current (Diode Conduction) IS: -2.6 A; (6)Maximum Power Dissipation TA = 25℃ PD: 2.5 W; (7)Operating Junction and Storage Temperature Range TJ, Tstg: –55 to 150 ℃.

Features

SI9433DY-T1 specifications: (1)Gate Threshold Voltage VGS(th): -0.8 V; (2)Gate-Body Leakage IGSS: ±100 nA; (3)Zero Gate Voltage Drain Current IDSS: -1 μA; (4)On-State Drain Current ID(on): -20 A; (5)Drain-Source On-State Resistance rDS(on): 0.032 to 0.045 Ω; (6)Forward Transconductance gfs: 15 S; (7)Diode Forward Voltage VSD: -0.76 to -1.2 V.
