Product Summary
The SI9433DY is a P-Channel 20-V (D-S) MOSFET.
Parametrics
SI9433DY absolute maxing ratings: (1)Drain-Source Voltage VDS: -20 V; (2)Gate-Source Voltage VGS: ±12 V; (3)Continuous Drain Current (TJ = 150℃) TA = 25℃ ID: ±5.4 A; (4)Pulsed Drain Current IDM: ±20 A; (5)Continuous Source Current (Diode Conduction) IS: -2.6 A; (6)Maximum Power Dissipation TA = 25℃ PD: 2.5 W; (7)Operating Junction and Storage Temperature Range TJ, Tstg: –55 to 150 ℃.
Features
SI9433DY specifications: (1)Gate Threshold Voltage VGS(th): -0.8 V; (2)Gate-Body Leakage IGSS: ±100 nA; (3)Zero Gate Voltage Drain Current IDSS: -1 μA; (4)On-State Drain Current ID(on): -20 A; (5)Drain-Source On-State Resistance rDS(on): 0.032 to 0.045 Ω; (6)Forward Transconductance gfs: 15 S; (7)Diode Forward Voltage VSD: -0.76 to -1.2 V.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |

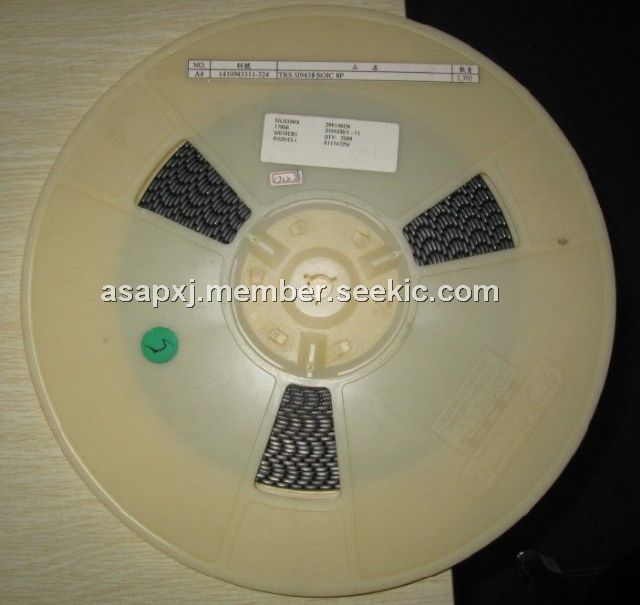

 SI9433DY |
Vishay/Siliconix |
MOSFET 20V 5.4A 2.5W |
Data Sheet |
Negotiable |
|
||||
