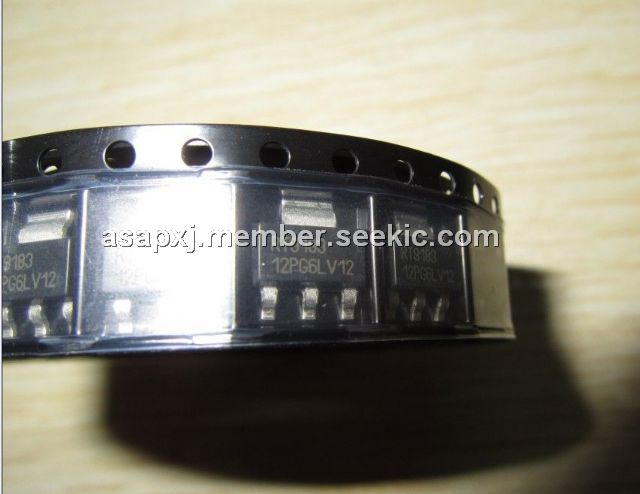

Product Summary

The RT9183-12PG is an ultra low dropout 1.5A linear regulator. The RT9183-12PG provides ultra low-dropout voltage, high output current with low ground current. It operates from an input of 2.3V to 5.5V and provides output current up to 1.5A thus is suitable to drive digital circuits requiring low voltage at high currents. The applications of the RT9183-12PG include Battery-Powered Equipment, Mother Board/Graphic Card, Peripheral Cards, PCMCIA Card.

Parametrics

RT9183-12PG absolute maximum ratings: (1)Supply Input Voltage: 6V; (2)Package Thermal Resistance: SOT-223,θJA: 115℃/W; SOT-223, θJC: 15℃/W; SOT-223 (F-Type), θJA: 135℃/W; SOT-223 (F-Type), θJC: 17℃/W; SOP-8, θJA: 125℃/W; SOP-8, θJC: 20℃/W; TO-252, θJA: 68℃/W; TO-252, θJC: 8℃/W; TO-252 (F-Type),θJA: 75℃/W; (3)TO-252 (F-Type), θJC: 15℃/W; TO-263, θJA: 45℃/W; TO-263,θJC: 8℃/W; (4)Power Dissipation, PD@TA = 25℃: SOT-223: 0.87W; SOT-223 (F-Type): 0.74W; SOP-8: 0.8W; TO-252: 1.471W; TO-252 (F-Type): 1.333W; TO-263: 2.22W; (5) Lead Temperature (Soldering, 10 sec.):260℃; (6)Junction Temperature: 150℃; (7)Storage Temperature Range: -65℃ to 150℃; (8)ESD Susceptibility: HBM (Human Body Mode):2kV; MM (Machine Mode): 200V.

Features

RT9183-12PG features: (1)330mV Dropout @ 1.5A; (2)380μA Low Ground Pin Current; (3)Excellent Line and Load Regulation; (4)0.1μA Quiescent Current in Shutdown Mode; (5)Guaranteed 1.5A Output Current; (6)Fixed Output Voltages : 1.2V to 3.3V; (7)Adjustable Output Voltage from 0.8V to 4.5V; (8)Over-Temperature/Over-Current Protection; (9)RoHS Compliant and 100% Lead (Pb)-Free.

Diagrams

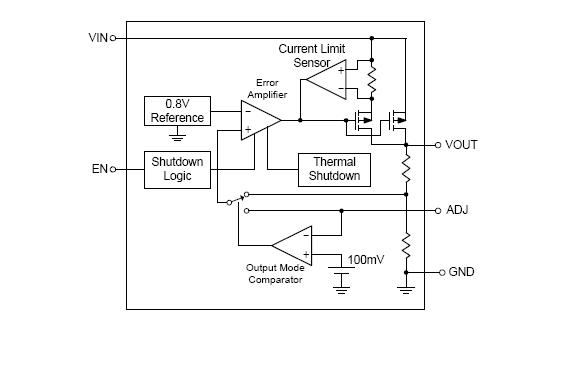

RT9183-12PG block diagram
