Product Summary
The PS2501AL-1-F3-A is an optically coupled isolator containing a GaAs light emitting diode and an NPN silicon phototransistor. The PS2501AL-1-F3-A is lead bent type (Gull-wing) for surface mount. It is used in power supply, telephone / fax, factory automation, programmable logic controller.
Parametrics
PS2501AL-1-F3-A absolute maximum ratings: (1)VR Reverse Voltage: 6 V; (2)IF Forward Current: 30 mA; (3)△PD/℃ Power Dissipation Derating: 1.5 mW/℃; (4)PD Power Dissipation: 150 mW; (5)IF (PEAK) Peak Forward Current: 0.5 A; (6)VCEO Collector to Emitter Voltage: 70 V; (7)VECO Emitter to Collector Voltage: 5 V; (8)IC Collector Current: 30 mA; (9)BV Isolation Voltage: 5000 Vr.m.s.; (10)TA Operating Ambient Temp.: -55 to +100 ℃; (11)TSTG Storage Temperature: -55 to +150 ℃.
Features
PS2501AL-1-F3-A features: (1)high isolation voltage bv: 5000 vr.m.s; (2)ul awaiting approval; (3)ordering number of taping product PS2501AL-1-E3, E4, F3, F4.

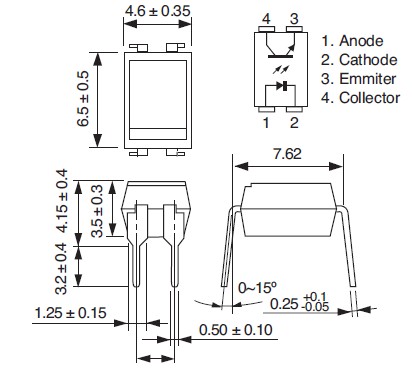

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 PS2501AL-1-F3-A |
CEL |
Transistor Output Optocouplers Hi-Iso Photo 1-Ch |
Data Sheet |
|
|
||||||||||||||
| Image | Part No | Mfg | Description | |
Pricing (USD) |
Quantity | ||||||||||||||
 |
PS2500 |
Other |
|
Data Sheet |
Negotiable |
|
||||||||||||||
|
PS2501 |
Other |
|
Data Sheet |
Negotiable |
|
||||||||||||||
|
PS2501-1 |
CEL |
Transistor Output Optocouplers Hi-Iso Photo 1-Ch OBSOLETE |
Data Sheet |
Negotiable |
|
||||||||||||||
|
PS2501-1-A |
CEL |
Transistor Output Optocouplers Hi-Iso Photo 1-Ch |
Data Sheet |
|
|
||||||||||||||
|
PS2501-1-D-A |
CEL |
Transistor Output Optocouplers Hi-Iso Photo 1-Ch CTR RANK D:100-300% |
Data Sheet |
|
|
||||||||||||||
|
PS2501-1-H |
CEL |
Transistor Output Optocouplers Hi-Iso Photo 1-Ch |
Data Sheet |
Negotiable |
|
||||||||||||||
