Product Summary
The OP07CDR offers low offset and long-term stability by means of a low-noise, chopperless, bipolar-input-transistor amplifier circuit. For most applications, external components are not required for offset nulling and frequency compensation. The true differential input, with a wide input-voltage range and outstanding common-mode rejection, provides maximum flexibility and performance of the OP07CDR in high-noise environments and in noninverting applications. Low bias currents and extremely high input impedances are maintained over the entire temperature range. The OP07CDR is unsurpassed for low-noise, high-accuracy amplification of very-low-level signals. The device is characterized for operation from 0℃ to 70℃.
Parametrics
OP07CDR absolute maximum ratings: (1)Supply voltage: VCC+ 22 V; (2)VCC.:22 V; (3)Differential input voltage: ±30 V; (4)Input voltage, VI: ±22 V; (5)Duration of output short circuit: Unlimited; (6)Package thermal impedance, θJA: D package: 97℃/W; (7)P package: 85℃/W; (8)Operating virtual junction temperature, TJ: 150℃; (9)Lead temperature 1,6 mm (1/16 inch) from case for 10 seconds: 260℃; (10)Storage temperature range, Tstg: 65℃ to 150℃.
Features
OP07CDR features: (1)Low Noise; (2)No External Components Required; (3)Replace Chopper Amplifiers at a Lower Cost; (4)Wide Input-Voltage Range: 0 to ±14 V Typ; (5)Wide Supply-Voltage Range: ±3 V to ±18 V.

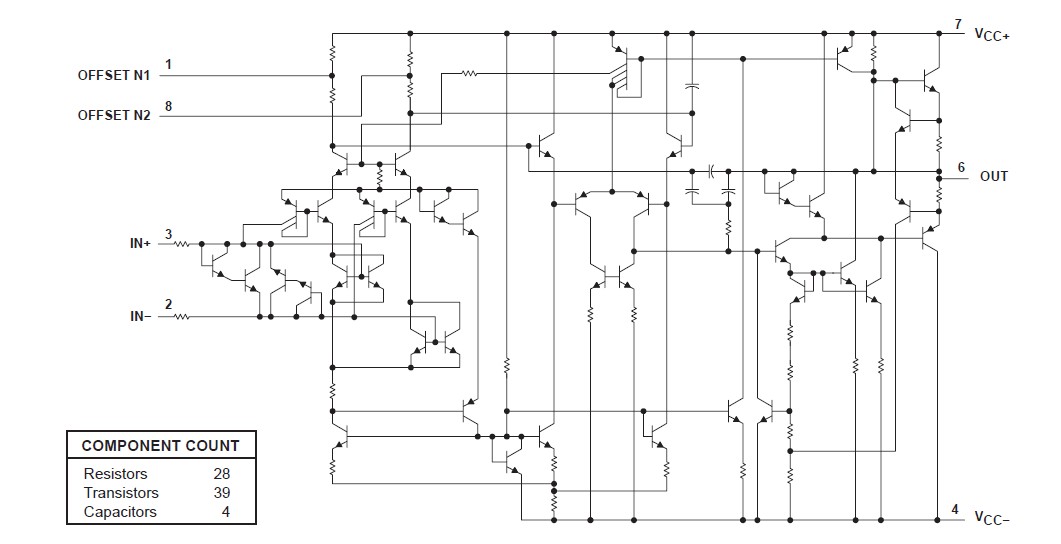

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 OP07CDR |
Texas Instruments |
Operational Amplifiers - Op Amps Low Offset Volt Prec |
Data Sheet |
|
|
||||||||||||
|
OP07CDRE4 |
Texas Instruments |
Operational Amplifiers - Op Amps Low-Offset Voltage Op Amp |
Data Sheet |
|
|
||||||||||||
|
OP07CDRG4 |
Texas Instruments |
Operational Amplifiers - Op Amps Low-Offset Voltage Op Amp |
Data Sheet |
|
|
||||||||||||
