Product Summary
The NJM3403AM-TE1 is a single-supply quad operational amplifier featuring the high slew rate and no cross-over distortion.
Parametrics
NJM3403AM-TE1 absolute maximum ratings: (1)Supply voltage V: 36(or ±18)V; (2)Differential input voltage VID: 36V; (3)Input voltage VIC: -0.3 to 36 V; (4)Power dissiaption PD: 500mW; (5)Operating temperature range Topr: -40 to 85 ℃; (6)Storage temperature range Tstg: -50 to 125 ℃.
Features
NJM3403AM-TE1 features: (1)Single supply; (2)Operating voltage: 4V to 36V; (3)Low operating current: 3mA typ; (4)Slew rate: 1.2V/μs typ; (5)Package outline: DIP14, DMP14, SSOP14; (6)Bipolar technology.

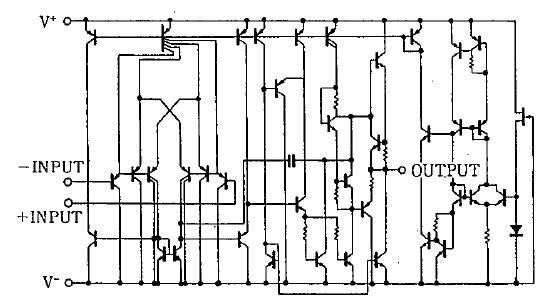

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 NJM3403AM-TE1 |
NJR |
Operational Amplifiers - Op Amps Single-Supply Quad Op Amp |
Data Sheet |
|
|
||||||||||||
