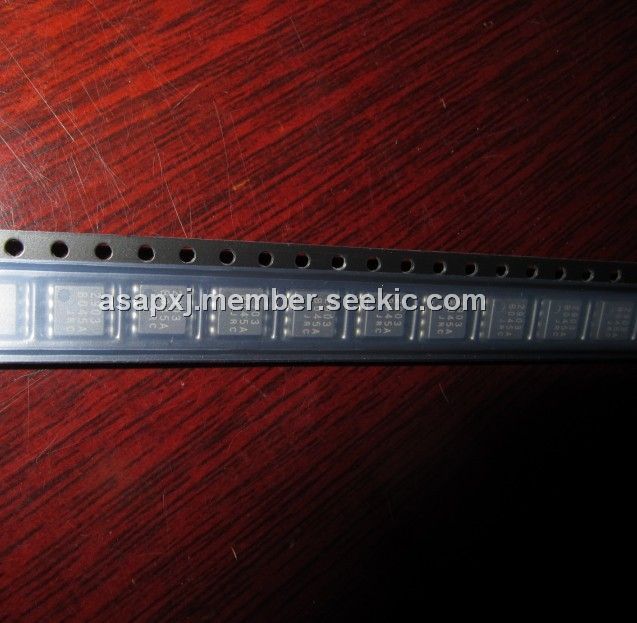

NJM2903M

single-supply dual comparator, SOP8, 2V to 36V, 15mA, NJM2903M

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.05~0.05 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.05~0.05

PartNumber:: NJM2903M

Brand:: Japan Radio Co.,ltd - JRC | Pack: SOP | D/C: 11+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Ella Wu's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-08-06

From Other Seller

Part Number:NJM2903M
US $0.05 - 0.05
ECA1HHG220

US $2.00 - 10.00 / Piece
(0) Remove
74AHC2G08VS SOP-8

US $2.00 - 2.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

The NJM2903M is a single-supply dual comparator. It consists of two independent precision voltage comparators with an offset voltage specification as low as 5.0mV max for two comparators which were designed specifically to operate from a single power supply over a wide range of voltages. The NJM2903M has a unique characteristics: the input common-mode voltage range includes ground, even though operated from a single power supply voltage. Application area of the NJM2903M include limit comparators, simple analog-to-digital converters; pulse, square-wave and time delay generators; wide range Vco; MOS clock timers; multivibrators and high voltage digital logic gates.

Parametrics

NJM2903M absolute maximum ratings: (1)Supply voltage V: 36(or ±18)V; (2)Differential input voltage VID: 36V; (3)Input voltage VIN: -0.3 to 36 V; (4)Power dissiaption PD: 500mW; (5)Operating temperature range Topr: -40 to 85 ℃; (6)Storage temperature range Tstg: -50 to 125 ℃.

Features

NJM2903M features: (1)Operating voltage: 2V to 36V; (2)Single supply operation; (3)Open collector output; (4)High output sink current: 15mA@2403; (5)Package outline: DIP8, DMP8, SIP8(SSOP8); (6)Bipolar technology.
