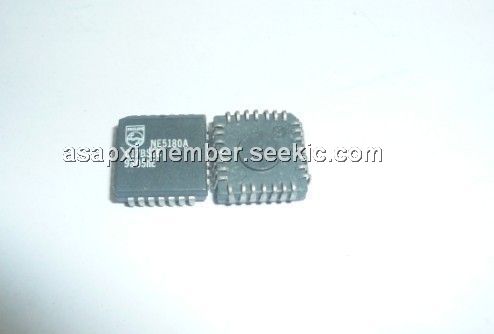

Product Summary

The NE5180A is an octal line receiver designed to interface data terminal equipment with data communications equipment. The device is intended for use where the data transmission rate is up to 200kb/s. The device covers the entire range of data rates up to 10Mb/s. The applications of the NE5180A include high-speed modems, high-speed parallel communications, computer I/O ports and logic level transiation.

Parametrics

NE5180A absolute maximum ratings: (1)power dissipation, PD: 800mW; (2)supply voltage, VCC: 7V; (3)common mode range, VCM: ±15V; (4)differential input voltage, VID: ±25V; (5)outputsink current, ISINK: 50mV; (6)failsafe voltage, VFS: -0.3 to VCC; (7)output short circuit time, JOS: 1sec.

Features

NE5180A features: (1)meets EIA RS-232C/423A/422A and CCITTV.10.V11.V.28; (2)single +5V supply, TTL compatible outputs; (3)differential inputs withstand ±25V; (4)failsafe feature; (5)input noise filter; (6)internal hysteresis; (7)available in SMD PLCC.

Diagrams

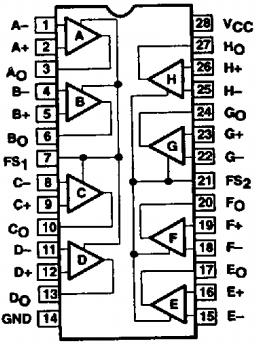

NE5180A pin configuration
