Product Summary
The MM74HCT04MX is a inverter. It is a logic function fabricated by using advanced silicon-gate CMOS technology which provides the inherent benefits of CMOS - low quiescent power and wide power supply range. The MM74HCT04MX is input and output characteristic as well as pin-out compatible with standard 74LS logic families. The MM74HCT04MX, triple buffered, hex inverter, features low power dissipation and fast switching times. All inputs are protected from static discharge by internal diodes to VCC and ground. The MM74HCT04MX is intended to interface between TTL and NMOS components and standard CMOS devices.
Parametrics
MM74HCT04MX absolute maximum ratings: (1)Supply Voltage (VCC): -0.5 to +7.0V; (2)DC Input Voltage (VIN): -1.5 to VCC +1.5V; (3)DC Output Voltage (VOUT): -0.5 to VCC +0.5V; (4)Clamp Diode Current (IIK, IOK): ±20 mA; (5)DC Output Current, per pin (IOUT): ±25 mA; (6)DC VCC or GND Current, per pin (ICC): ±50 mA; (7)Storage Temperature Range (TSTG): -65℃ to +150℃; (8)Power Dissipation (PD): 600 mW, S.O. Package only: 500 mW; (9) Lead Temperature (TL) (Soldering 10 seconds): 260℃.
Features
MM74HCT04MX features: (1) TTL, LS pin-out and threshold compatible; (2) Fast switching: tPLH, tPHL=12 ns (typ); (3) Low power: 10 mW at DC, 3.7 mW at 5 MHz; (4) High fanout: 3 10 LS loads; (5) Inverting, triple buffered.

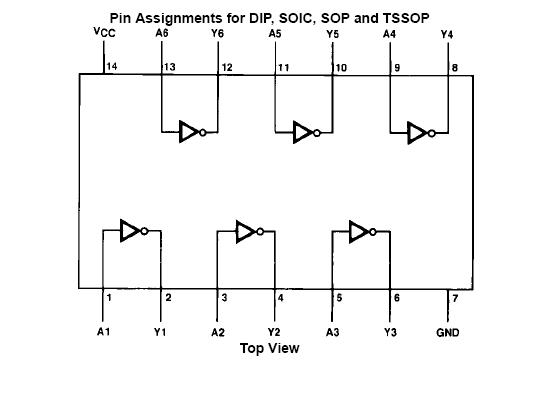

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |

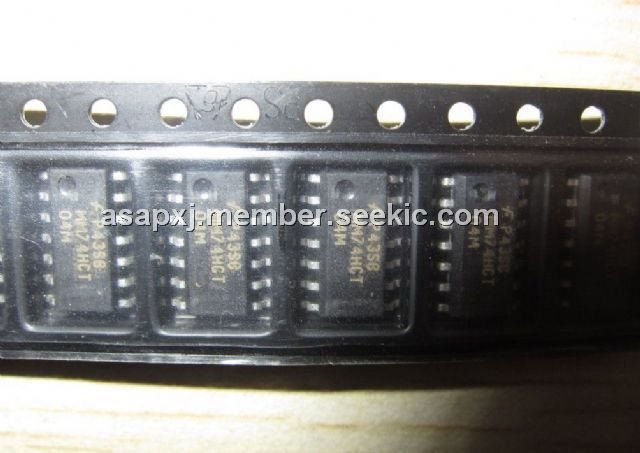

 MM74HCT04MX |
Fairchild Semiconductor |
Inverters Hex Inverter |
Data Sheet |
|
|
||||||||||||
|
MM74HCT04MX_NL |
Fairchild Semiconductor |
Inverters Hex Inverter |
Data Sheet |
Negotiable |
|
||||||||||||
|
MM74HCT04MX_Q |
Fairchild Semiconductor |
Inverters Hex Inverter |
Data Sheet |
Negotiable |
|
||||||||||||
