LM1117IMPX-3.3

low-dropout linear regulator, 800MA, 3.3V, SOT-223, LM1117IMPX-3.3

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.32~0.32 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.32~0.32

PartNumber:: LM1117IMPX-3.3

Brand:: National Semiconductor - NS | Pack: SOT | D/C: 11+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Ella Wu's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-08-04

From Other Seller

Part Number:LM1117IMPX-3.3
US $0.32 - 0.32
IRF9540NPBF

US $0.50 - 3.20 / Piece
(0) Remove
CM300DY-12NF

US $63.00 - 80.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

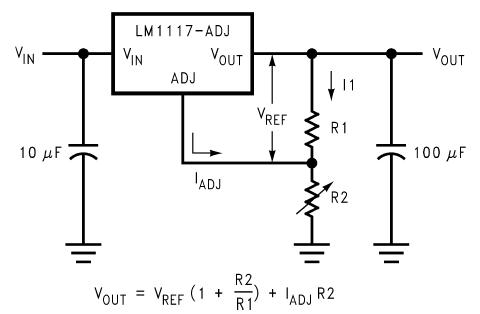

The LM1117IMPX-3.3 is an 800mA low-dropout linear regulator. It has the same pin-out as National Semiconductor’s industry standard LM317. The LM1117IMPX-3.3 is available in an adjustable version, which can set the output voltage from 1.25V to 13.8V with only two external resistors. In addition, it is also available in five fixed voltages, 1.8V, 2.5V, 2.85V, 3.3V, and 5V. The LM1117IMPX-3.3 offers current limiting and thermal shutdown. Its circuit includes a zener trimmed bandgap reference to assure output voltage accuracy to within ±1%. The applications of the LM1117IMPX-3.3 include 2.85V Model for SCSI-2 Active Termination, Post Regulator for Switching DC/DC Converter, High Efficiency Linear Regulators, Battery Charger, Battery Powered Instrumentation.

Parametrics

LM1117IMPX-3.3 absolute maximum ratings: (1)Maximum Input Voltage (VIN to GND): 20V; (2)Power Dissipation: Internally Limited; (3)Junction Temperature (TJ): 150℃; (4)Storage Temperature Range: -65℃ to 150℃; (5)Lead Temperature: TO-220 (T) Package: 260℃, 10 sec; SOT-223 (IMP) Package: 260℃, 4 sec; (6)ESD Tolerance: 2000V.

Features

LM1117IMPX-3.3 features: (1)Available in 1.8V, 2.5V, 2.85V, 3.3V, 5V, and Adjustable Versions; (2)Space Saving SOT-223 and LLP Packages; (3)Current Limiting and Thermal Protection; (4)Output Current: 800mA; (5)Line Regulation: 0.2% (Max); (6)Load Regulation: 0.4% (Max); (7)Temperature Range: -40℃ to 125℃.
