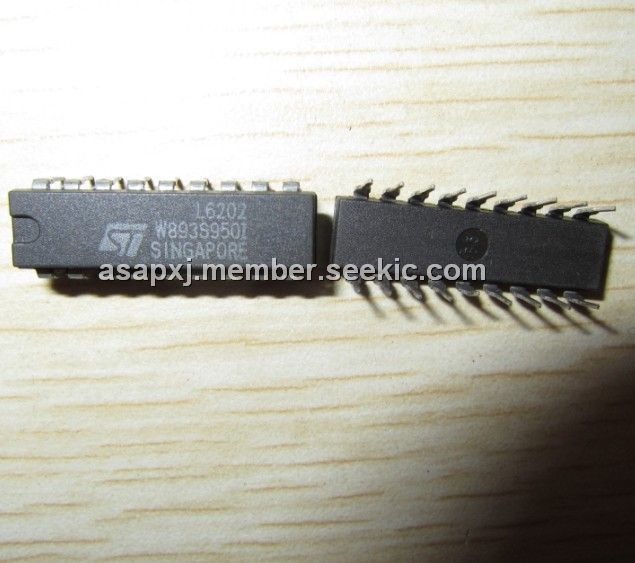

L6202

DMOS FULL BRIDGE DRIVER, L6202, 52V, 10A, 1.3W, DIP

Rated 5 Rating 5 | reviews | Write a review

Price:: US $2.38~2.40 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $2.38~2.40

PartNumber:: L6202

Brand:: STMicroelectronics - ST | Pack: DIP | D/C: 11+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Ella Wu's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-08-11

From Other Seller

Part Number:L6202
US $2.38 - 2.40
YL-G709

US $65.00 - 68.00 / Piece
(0) Remove
CM2030-A0TR

US $0.92 - 2.50 / Piece
(0) Remove
Quantity:

piece

Product Summary

The L6202 is a DMOS full bridge driver. The L6202 is a full bridge driver for motor control applications realized in Multipower-BCD technology which combines isolated DMOS power transistors with CMOS and Bipolar circuits on the same chip. By using mixed technology it has been possible to optimize the logic circuitry and the power stage to achieve the best possible performance. The DMOS output transistors can operate at supply voltages up to 42V and efficiently at high switching speeds. All the logic inputs are TTL, CMOS and mC compatible. Each channel (half-bridge) of the device is controlled by a separate logic input, while a common enable controls both channels. The L6202 is mounted in three different packages.

Parametrics

L6202 absolute maximum ratings: (1)Vs Power Supply: 52 V; (2)VOD Differential Output Voltage (between Out1 and Out2): 60 V; (3)VIN, VEN Input or Enable Voltage: – 0.3 to + 7 V; (4)Io Pulsed Output Current for L6201PS/L6202/L6203: 5A; (5)Non Repetitive (＜1 ms) for L6201PS/L6202/L6203: 10A; (6)Vsense Sensing Voltage: –1A to + 4 V; (7)Vb Boostrap Peak Voltage: 60 V; (8)Ptot Total Power Dissipation:; (9)Tpins = 90℃ for L6202: 5W; (10)Tamb = 70℃ for L6202: 1.3W; (11)Tstg, Tj Storage and Junction Temperature: –40℃ to +150℃.

Features

L6202 features: (1)supply voltage up to 48V; (2)5amax peak current (2A max. for L6201); (3)Totalrms current up to L6202: 1.5A; (4)RDS (on) 0.3Ω (typical value at 25℃); (5)cross conduction protection; (6)TTL compatible drive; (7)operating frequency up to 100KHz; (8)thermal shutdown; (9)internal logic supply; (10)high efficiency.
