Product Summary

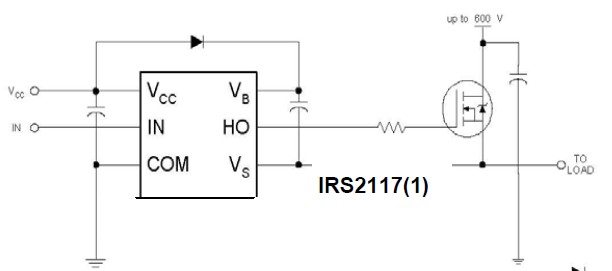

The IRS2117STRPBF is a single channel driver. Proprietary HVIC and latch immune CMOS technologies enable ruggedized monolithic construction. The logic input of the IRS2117STRPBF is compatible with standard CMOS outputs. The output driver features a high pulse current buffer stage designed for minimum cross-conduction. The floating channel of the IRS2117STRPBF can be used to drive an N-channel power MOSFET or IGBT in the high-side or low-side configuration which operates up to 600 V.

Parametrics

IRS2117STRPBF absolute maximum ratings: (1)VB High-side floating supply voltage: -0.3 to 625 V; (2)VS High-side floating supply offset voltage: VB - 25 to VB + 0.3 V; (3)VHO High-side floating output voltage: VS - 0.3 to VB + 0.3 V; (4)V; (5)VCC Logic supply voltage: - 0.3 to 25 V; (6)VIN Logic input voltage - 0.3 to VCC + 0.3 V; (7)dVS/dt Allowable offset supply voltage transient: 50 V/ns; (8)TJ Junction temperature:150 ℃; (9)TS Storage temperature: -55 to 150 ℃; (10)TL Lead Temperature (soldering, 10 seconds): 300 ℃.

Features

IRS2117STRPBF features: (1)Floating channel designed for bootstrap operation; (2)Fully operational to +600V; (3)Tolerant to negative transient voltage, dV/dt immune; (4)Gate drive supply range from 10 V to 20V; (5)Undervoltage lockout; (6)CMOS Schmitt-triggered inputs with pull-down; (7)Output in phase with input; (8)RoHS compliant; (9)IRS2117 and IRS2118 available in PDIP8.
