IRFR420TRPBF

IRFR420TRPBF, N-Channel MOSFET, 500V, 2.4 Amp, TO252

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.19~0.20 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.19~0.20

PartNumber:: IRFR420TRPBF

Brand:: International Rectifier - IR | Pack: TO | D/C: 11+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Ella Wu's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-08-20

From Other Seller

Part Number:IRFR420TRPBF
US $0.19 - 0.20
ECA1HHG4R7

US $10.00 - 10.00 / Piece
(0) Remove
ECA1HHG100

US $10.00 - 10.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

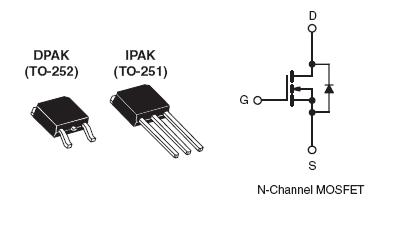

The IRFR420TRPBF is a power mosfet. Third generation Power mosfets of the IRFR420TRPBF provide the designer with the best combination of fast switching, ruggedized device design, low on-resistance and cost effictiveness. The DPAK is designed for surface mounting using vapor phase, infrared, or wave soldering techniques. The straight lead version (IRFU/SiHFU series) is for through-hole mounting applications. Power dissipation levels up to 1.5 W are possible in typical surcace mount applications.

Parametrics

IRFR420TRPBF absolute maximum ratings: (1)Drain-Source Voltage: 500V; (2)Gate-Source Voltage: ±20V; (3)Continuous Drain Current(TC=25℃): 2.4A; (4)Continuous Drain Current(TC=100℃): 1.5A; (5)Pulsed Drain Current: 8.0A; (6)Linear Derating Factor (PCB Mount): 0.02W/℃; (7)Linear Derating Factor: 0.33W/℃; (8)Single Pulse Avalanche Energy: 400mJ; (9)Repetitive Avalanche Current: 2.4A; (10)Repetitive Avalanche Energy: 4.2mJ; (11)Maximum Power Dissipation(TC=25℃): 42W; (12)Maximum Power Dissipation (PCB Mount)(TA=25℃): 2.5W; (13) Peak Diode Recovery dV/dt: 3.5V/ns.

Features

IRFR420TRPBF features: (1) Dynamic dV/dt Rating; (2) Repetitive Avalanche Rated; (3) Surface Mount (IRFR420/SiHFR420); (4) Straight Lead (IRFU420/SiHFU420); (5) Available in Tape and Reel; (6) Fast Switching; (7) Ease of Paralleling; (8) Lead (Pb)-free Available.
