Product Summary
The HK100522NJ is a multilayer chip inductor for high frequency. The applications of it are Portable telephones, PHS and W-LAN, Miscellaneous high-frequency circuits, EMI countermeasure in high-frequency circuits.
Parametrics
HK100522NJ general specifications: (1)Inductance:22nH ; (2)Tolerance:±5% ; (3)Package / Case:0402 (1005 Metric) ; (4)Packaging:Cut Tape (CT) ; (5)Type:Ceramic ; (6)Current:300mA ; (7)Mounting Type:Surface Mount ; (8)Q @ Freq:8 @ 100MHz ; (9)Frequency - Self Resonant:1.9GHz ; (10)DC Resistance (DCR):600 mOhm Max.
Features
HK100522NJ features: (1)Multilayer inductor made of advanced ceramics with low-resistivity silver used as internal conductors provides excellent Q and SRF characteristics; (2)Designed to address surface mount inductor needs for applications above 100MHz; (3)Multilayer block structure ensures outstanding reliability, high productivity and product quality.

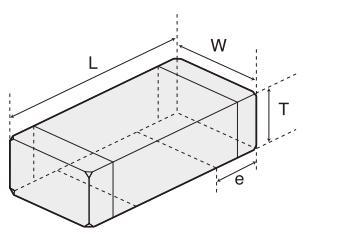

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 HK100522NJ-T |
Taiyo Yuden |
RF Inductors INDCTR HIFREQ MLTLYR 0402 22nH 5% |
Data Sheet |
|
|
||||||||||||
| Image | Part No | Mfg | Description | |
Pricing (USD) |
Quantity | ||||||||||||
|
HK100510NJ-T |
Taiyo Yuden |
RF Inductors INDCTR HIFREQ MLTLYR 0402 10nH 5% |
Data Sheet |
|
|
||||||||||||
|
HK100510NK-T |
Taiyo Yuden |
RF Inductors INDCTR HIFREQ MLTLYR 0402 10nH 10% |
Data Sheet |
|
|
||||||||||||
|
HK100512NJ-T |
Taiyo Yuden |
RF Inductors INDCTR HIFREQ MLTLYR 0402 12nH 5% |
Data Sheet |
|
|
||||||||||||
|
HK100512NK-T |
Taiyo Yuden |
RF Inductors INDCTR HIFREQ MLTLYR 0402 12nH 10% |
Data Sheet |
|
|
||||||||||||
|
HK100515NJ-T |
Taiyo Yuden |
RF Inductors INDCTR HIFREQ MLTLYR 0402 15nH 5% |
Data Sheet |
|
|
||||||||||||
|
HK100515NK-T |
Taiyo Yuden |
RF Inductors INDCTR HIFREQ MLTLYR 0402 15nH 10% |
Data Sheet |
|
|
||||||||||||
