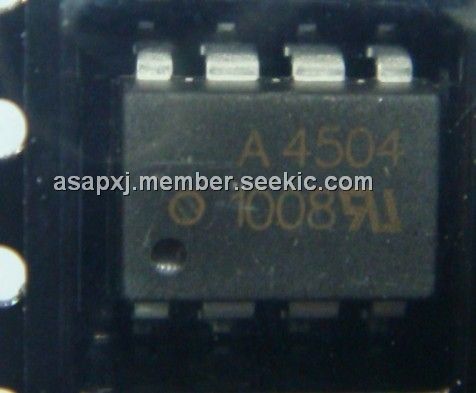

HCPL-4504

Optocoupler, DIP, 25 mA

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.10~1.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.10~1.00

PartNumber:: HCPL-4504

Brand:: AVAGO TECHNOLOGIES LIMITED - Avago | Pack: DIP | D/C: 10+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Ella Wu's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-07-23

From Other Seller

Part Number:HCPL-4504
US $0.10 - 1.00
ECA1HHG220

US $2.00 - 10.00 / Piece
(0) Remove
HCPL-7800A

US $2.50 - 4.10 / Piece
(0) Remove
Quantity:

piece

Product Summary

The HCPL-4504 High CMR, High Speed Optocoupler contains a GaAsP LED. The LED is optically coupled to an integrated high gain photo detector. The HCPL-4504 has short propagation delays and high CTR. It also has a guaranteed propagation delay diff erence (tPLH-tPHL). These features make the HCPL-4504 an excellent solution to IPM inverter dead time and other switching problems. The applications of the HCPL-4504 include Line receivers: Short propagation delays and low input-output capacitance, High speed logic ground isolation: TTL/TTL, TTL/CMOS, TTL/LSTTL, Replaces pulse transformers: Save board space and weight.

Parametrics

HCPL-4504 absolute maximum ratings: (1)Storage Temperature: -55 to 125 ℃; (2)Operating Temperature: -55 to 100 ℃; (3)Average Forward Input Current: 25 mA; (4)Peak Forward Input Current (50% duty cycle, 1 ms pulse width): 50 mA; (5)Peak Transient Input Current (≤1 μs pulse width, 300 pps): 1 A; (6)Reverse LED Input Voltage (Pin 3-2): 5 V; (7)Input Power Dissipation: 45 mW; (8)Average Output Current (Pin 6): 8 mA; (9)Peak Output Current: 16 mA; (10)Supply Voltage (Pin 8-5): -0.5 to 30 V; (11)Output Voltage (Pin 6-5): -0.5 to 20 V; (12)Output Power Dissipation: 100 mW; (13)Lead Solder Temperature (Through-Hole Parts Only) 1.6 mm below seating plane, 10 seconds: 260 ℃.
