Product Summary

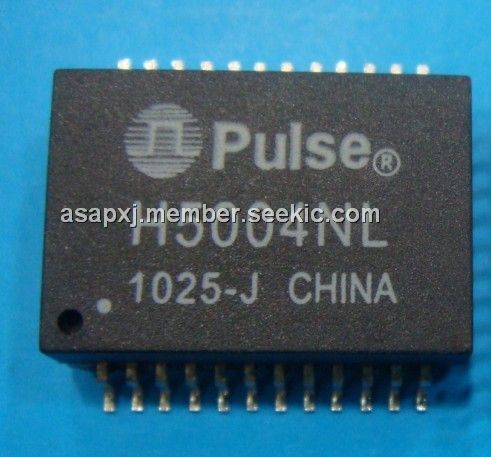

The H5004NL is a 1000BASE-T Magnetics module.

Features

H5004NL features: (1)RoHS peak reflow temperature rating 245℃; (2)Meets IEEE 802.3 specification.

Diagrams

H5004NL Mechanicals

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
H5004NL
H5004NL

Pulse

Transformers Audio & Signal Gigabit single

Data Sheet

0-75: $4.43
75-100: $3.54
100-500: $3.04
500-1000: $2.81
H5004NLT
H5004NLT

Pulse

Transformers Audio & Signal Gigabit single

Data Sheet

0-188: $3.54
188-300: $3.54
300-500: $3.04
500-1000: $2.81
