Product Summary

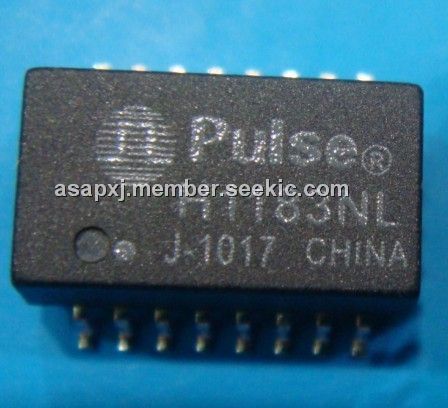

The H1183NL is a 10/100 base-t single port surface mount magnetic with various turns ratios.

Parametrics

H1183NL Specifications: (1)Insertion Loss 100KHz-100MHz(dB MAX): -1.1; (2)Return Loss(dB typ): 30 MHz: -18; 60 MHz: -14; 80 MHz: -12; (3)Differential to Common Mode Rejection(dB typ): 30 MHz: -40; 50 MHz: -40; 100 MHz: -40; (4)Crosstalk(dB typ): 30 MHz: -35; 60 MHz: -35; 100 MHz: -35; (5)Hipot (Vrms MIN): 1500.

Features

H1183NL features: (1)For RoHS part add suffix NL4; (2)Peak solder temperature rating per Table 5-2 in IPC/JEDEC J-STD-020C; (3)Meets IEEE 802.3 specification; (4)Compact footprint for use in the most space-restrictive applications.

Diagrams

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
H1183NL
H1183NL
Pulse
Transformers Audio & Signal TRANSFORMER
Data Sheet
0-1: $2.66
1-25: $2.32
25-100: $1.80
100-500: $1.48
H1183NLT
H1183NLT
Pulse
Transformers Audio & Signal TRANSFORMER
Data Sheet
0-280: $2.32
280-500: $1.80
500-600: $1.80
600-1000: $1.48
