Product Summary

The F951C226MQAA is a 22uF solid tantalum electrolytic capacitor.

Parametrics

F951C226MQAA general specifications: (1)Temperature Range:-55 to +125℃ (Rated temperature: +85℃); (2)Capacitance Tolerance:±20%, ±10% (at 120Hz); (3)rated voltage:16V; (4)rated capacitance:22uF; (5)case code:Q; (6)leakage current:3.5uA; (7)dissipation factor:12% @120Hz; (8)ESR:3.0Ω@100kHz.

Features

F951C226MQAA features: (1)Adapted to the RoHS directive (2002/95/EC).

Diagrams

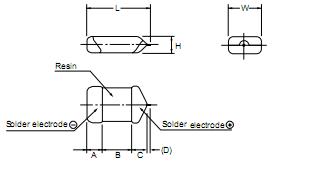

F951C226MQAA package dimensions

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
F951C226MQAAQ2
F951C226MQAAQ2
Nichicon
Tantalum Capacitors - Solid SMD 16volts 22uF 3.2x1.6
Data Sheet
0-1: $0.53
1-500: $0.35
500-1000: $0.27
1000-2500: $0.18
Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
F951A107KAAAQ2
F951A107KAAAQ2
Nichicon
Tantalum Capacitors - Solid SMD 100uF 10V 10%
Data Sheet
0-760: $0.64
760-1000: $0.51
1000-2000: $0.33
2000-5000: $0.32
F951A107KTAAQ3
F951A107KTAAQ3
Nichicon
Tantalum Capacitors - Solid SMD 100uF 10V 10%
Data Sheet
0-600: $0.64
600-1000: $0.51
1000-2000: $0.33
2000-5000: $0.32
F951A226KSAAQ3
F951A226KSAAQ3
Nichicon
Tantalum Capacitors - Solid SMD 22uF 10V 10%
Data Sheet
0-750: $0.42
750-1000: $0.33
1000-2000: $0.22
2000-5000: $0.21
F951A336KSAAQ3
F951A336KSAAQ3
Nichicon
Tantalum Capacitors - Solid SMD 33uF 10V 10%
Data Sheet
0-760: $0.44
760-1000: $0.35
1000-2000: $0.23
2000-5000: $0.22
F951A226KSAAQ2
F951A226KSAAQ2
Nichicon
Tantalum Capacitors - Solid SMD
Data Sheet
Negotiable
F951C106MAAAQ2
F951C106MAAAQ2
Nichicon
Tantalum Capacitors - Solid SMD 16volts 10uF 3.2x1.6
Data Sheet
0-1: $0.72
1-500: $0.48
500-1000: $0.37
1000-2500: $0.25
