Product Summary
The CMX-309F is a Citizen Crystal and Oscillator. It is ideal for application to high-density circuit boards. As it incorporates a heat-resisting packaged cylinder-type crystal, the CMX-309F features highly stable characteristics high enough to permit reflow soldering. The CMX-309F can be used for a wide range of applications including use in communication equipment, AV equipment, OA equipment and measuring instruments.
Parametrics
CMX-309F general specifications: (1)Frequency range:1.000MH to 30.000MHz; (2)Operating temperature range:-20 to +70℃; (3)Storage temperature range:-55 to +125℃; (4)Supply voltage:5.0V to ±0.5V; (5)Supply current:23mA.
Features
CMX-309F features: (1)Being of the miniature plastic SMD type and featuring high efficiency in mounting, the CMX-309 is ideal for application to high-density circuit boards; (2)As it incorporates a heat-resisting packaged cylinder-type crystal, it features highly stable characteristics-high enough to permit reflow soldering; (3)Can be mounted automatically because of the emboss taping used; (4)Low power CMOS IC; (5)Provided with output enable function.

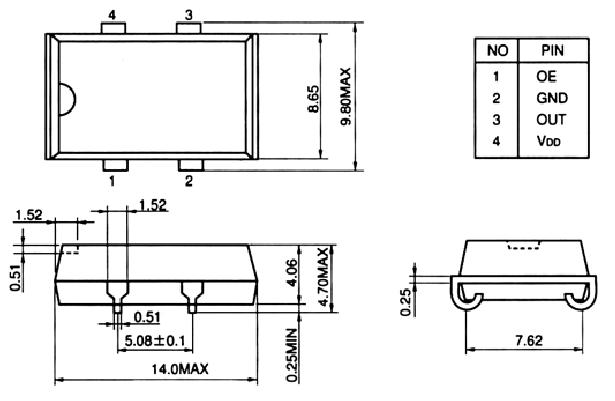

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 CMX-309FAB 22.5792MB |
|
OSCILLATOR 22.5792MHZ 3.3V SMT |
Data Sheet |
Negotiable |
|
||||
|
CMX-309FAB 24.576MB |
|
OSCILLATOR 24.576MHZ 3.3V SMT |
Data Sheet |
Negotiable |
|
||||
