Product Summary

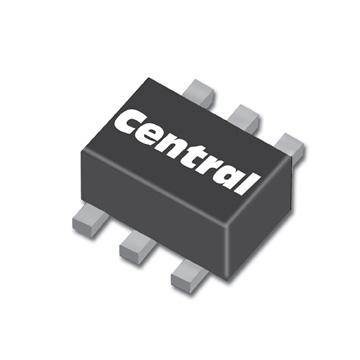

The CMLT3904ETR is an enhanced specification surface mount complementary silicon transistor in a space saving SOT-563 package. The CMLT3904ETR is designed for small signal general purpose amplifier and switching applications.

Parametrics

CMLT3904ETR absolute maximum ratings: (1)Collector-Base Voltage:60V; (2)Collector-Emitter Voltage:40V; (3)Emitter-Base Voltage:6.0V; (4)Continuous Collector Current:200mA ; (5)Power Dissipation:350mW, 300mW or 150mW; (6)Operating and Storage Junction Temperature:-65℃ to +150℃; (7)Thermal Resistance:357℃/W.

Features

CMLT3904ETR features: (1)BVCBO from 40V MIN to 60V MIN (PNP); (2)BVEBO from 5.0V MIN to 6.0V MIN (PNP); (3)hFE from 60 MIN to 70 MIN (NPN/PNP); (4)VCE(SAT) from 0.3V MAX to 0.2V MAX (NPN), from 0.4V MAX to 0.2V MAX (PNP).

Diagrams

CMLT3904ETR pin configuration
