Product Summary

The CCP2E20HTE is a chip fuse.

Parametrics

CCP2E20HTE general specifications: (1)current rating:1.00A; (2)fusing current:2.0A; (3)fusing time:1 second max. @ fusing current; (4)internal R. maximum:100mΩ; (5)maximum open circuit voltage:72V; (6)rated ambient temperature:+70℃; (7)operating temperature range:-40℃ to +125℃.

Features

CCP2E20HTE features: (1)Immediate cut-off of excessive heat; (2)No generation of heat; (3)UL94V0 epoxy case; (4)Suitable for flow and reflow soldering; (5)UL248.14, file #131375; (6)One-time fuse device; (7)Marking: Black body color with yellow marking; (8)Products with lead-free terminations meet EU RoHS and China RoHS requirements.

Diagrams

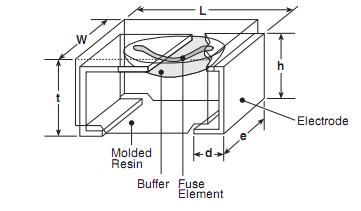

CCP2E20HTE package dimensions
