Product Summary
The BCX70G is a 100mA NPN transistor in a SOT23 plastic package. The applications of it are General purpose switching and amplification.
Parametrics
BCX70G absolute maximum ratings: (1)collector-base voltage open emitter:45V; (2)collector-emitter voltage open base:45V; (3)emitter-base voltage open collector:5V; (4)collector current (DC):100mA; (5)peak collector current:200mA; (6)peak base current:200mA; (7)total power dissipation:250mW; (8)storage temperature:-65℃ to +150℃; (9)junction temperature:- 150℃; (10)operating ambient temperature:-65℃ to +150℃.
Features
BCX70G features: (1)Low current (max. 100 mA); (2)Low voltage (max. 45 V).

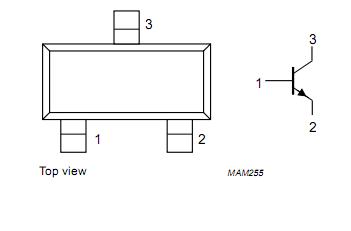

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 BCX70G |
Fairchild Semiconductor |
Transistors Bipolar (BJT) SOT-23 NPN GP AMP |
Data Sheet |
|
|
||||||||||||
 |
BCX70G T/R |
NXP Semiconductors |
Transistors Bipolar (BJT) TRANS GP TAPE-7 |
Data Sheet |
Negotiable |
|
||||||||||||
|
BCX70G,215 |
NXP Semiconductors |
Transistors Bipolar (BJT) TRANS GP TAPE-7 |
Data Sheet |
|
|
||||||||||||
 |
BCX70G_Q |
Fairchild Semiconductor |
Transistors Bipolar (BJT) SOT-23 NPN GP AMP |
Data Sheet |
Negotiable |
|
||||||||||||
|
BCX70GLT1 |
Other |
|
Data Sheet |
Negotiable |
|
||||||||||||
|
BCX70GMTF |
Fairchild Semiconductor |
Transistors Bipolar (BJT) SOT-23 NPN GP AMP |
Data Sheet |
Negotiable |
|
||||||||||||
