Product Summary

The AN34044AAVF is a Nine-Output Linear Voltage Regulator. It consists of five linear regulator (one adjustable) and four voltage followers. Seven of the outputs are controlled by three control switches. The AN34044AAVF is used in Voltage supply for car audio system.

Parametrics

AN34044AAVF absolute maximum ratings: (1)Supply voltage VCC: 26.0 V; (2)Supply current ICC: 5.2 A; (3)Power dissipation PD: 16.25 W; (4)Operating ambient temperature Topr: -30 to +85 ℃; (5)Storage temperature Tstg: -55 to +150 ℃.

Features

AN34044AAVF features: (1)Thermal protection circuit; (2)Short circuit protection circuit; (3)Over voltage protection circuit; (4)Operating supply voltage range: 6.6 V to 18.0 V (13.2 V typical); (5)High maximum operating voltage: 26 V.

Diagrams

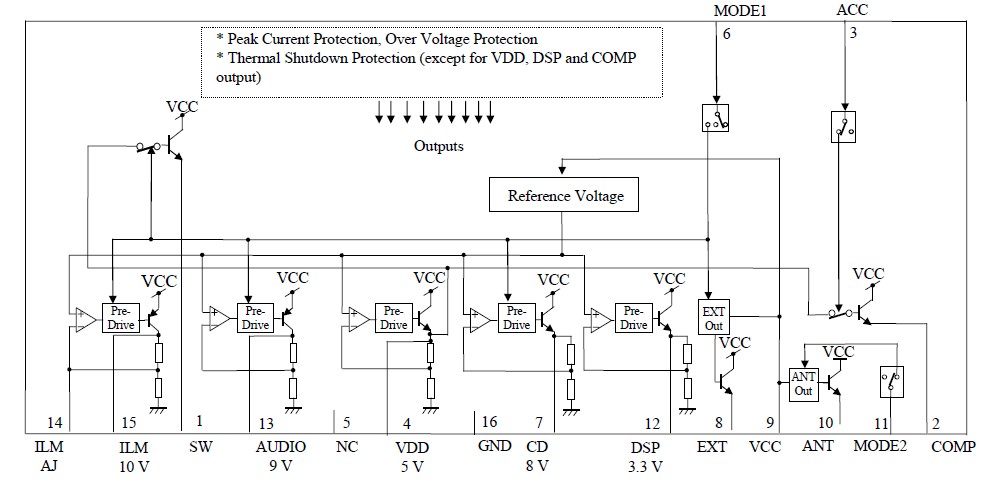

AN34044AAVF diagram
