Product Summary

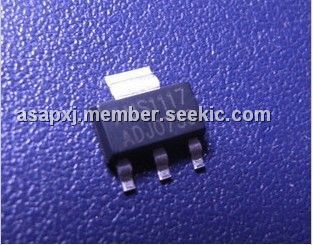

The AMS1117-5.0 is an adjustable and fixed voltage regulator. It is designed to provide 1A output current and to operate down to 1V input-to-output differential. The dropout voltage of the AMS1117-5.0 is guaranteed maximum 1.3V at maximum output current, decreasing at lower load currents. The applications of the AMS1117-5.0 include High Efficiency Linear Regulators, Post Regulators for Switching Supplies, 5V to 3.3V Linear Regulator, Battery Chargers, Active SCSI Terminators, Power Management for Notebook, Battery Powered Instrumentation.
Parametrics
AMS1117-5.0 absolute maximum ratings: (1)Power Dissipation: Internally limited; (2)Input Voltage: 15V; (3)Operating Junction Temperature: Control Section: 0 to 125 ℃, Power Transistor: 0 to 150 ℃; (4)Storage temperature: -65 ℃ to +150 ℃.
Features
AMS1117-5.0 features: (1)Three Terminal Adjustable or Fixed Voltages: 1.5V, 1.8V, 2.5V, 2.85V, 3.3V and 5.0V; (2)Output Current of 1A; (3)Operates Down to 1V Dropout; (4)Line Regulation: 0.2% Max.; (5)Load Regulation: 0.4% Max.; (6)SOT-223, TO-252 and SO-8 package available.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 AMS1117-5.0 |
Other |
|
Data Sheet |
Negotiable |
|
||||||||||||
