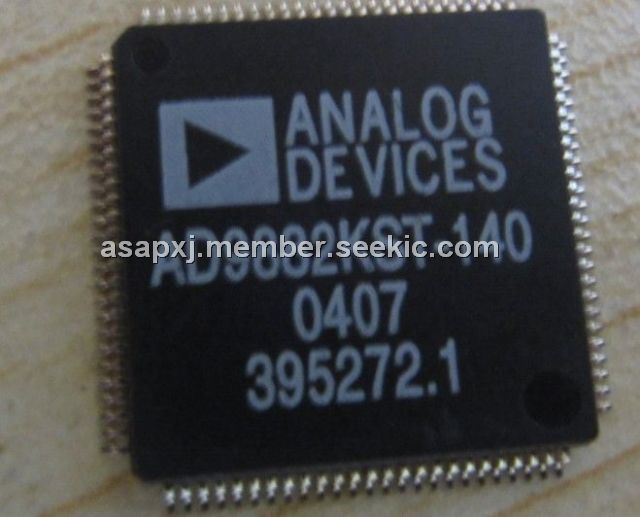

AD9882KST-140

AD, Dual Interface, 3.6V, 20mA, QFP, 140 MSPS

Rated 5 Rating 5 | reviews | Write a review

Price:: US $6.30~6.34 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $6.30~6.34

PartNumber:: AD9882KST-140

Brand:: Analog Devices - ADI | Pack: QFP | D/C: 11+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Ella Wu's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-08-21

From Other Seller

Part Number:AD9882KST-140
US $6.30 - 6.34
SIL9030CTU

US $2.50 - 5.10 / Piece
(0) Remove
2DI240A-055

US $70.00 - 100.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

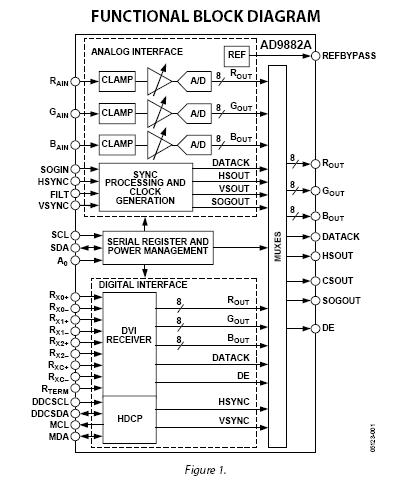

The AD9882KST-140 is a monolithic analog interface. The AD9882KST-140 offers designers the flexibility of an analog interface and Digital Visual Interface (DVI) receiver integrated on a single chip. Also included is support for High bandwidth Digital Content Protection (HDCP). The applications of the AD9882KST-140 are RGB graphics processing, LCD monitors and projectors, Plasma display panels, Scan converter, Microdisplays, Digital TV.

Parametrics

AD9882KST-140 absolute maximum ratings: (1)VD: 3.6 V; (2)VDD: 3.6 V; (3)Analog Inputs: VD to 0.0 V; (4)VREF: VD to 0.0 V; (5)Digital Inputs: 5 V to 0.0 V; (6)Digital Output Current: 20 mA; (7)Operating Temperature: –25℃ to +85℃; (8)Storage Temperature: –65℃ to +150℃; (9)Maximum Junction Temperature: 175℃; (10)Maximum Case Temperature: 150℃.

Features

AD9882KST-140 features: (1)140 MSPS Maximum Conversion Rate; (2)Programmable Analog Bandwidth; (3)0.5 V to 1.0 V Analog Input Range; (4)500 ps p p PLL Clock Jitter at 140 MSPS; (5)3.3 V Power Supply; (6)Full Sync Processing; (7)Midscale Clamping; (8)4:2:2 Output Format Mode; (9)DVI 1.0 Compatible Interface; (10)112 MHz Operation; (11)High Skew Tolerance of 1 Full Input Clock; (12)Sync Detect for Hot Plugging; (13)Supports High Bandwidth Digital Content Protection.
