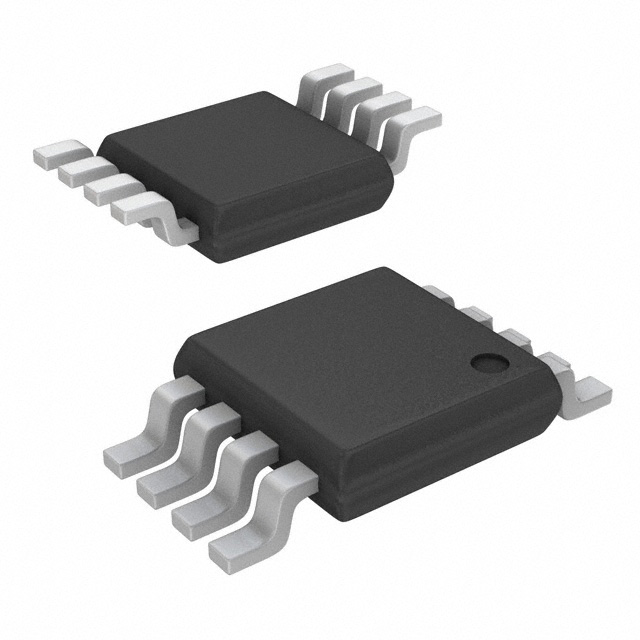

AD8310ARM

AD8310ARM, logarithmic amplifier, MSOP8, 7.5V, dc-440 MHz, 200mW, 18dBm

Rated 5 Rating 5 | reviews | Write a review

Price:: US $3.12~3.12 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $3.12~3.12

PartNumber:: AD8310ARM

Brand:: Analog Devices - ADI | Pack: MSOP | D/C: 11+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Ella Wu's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-10-09

From Other Seller

Part Number:AD8310ARM
US $3.12 - 3.12
AT45DB161D-SU

US $1.50 - 3.50 / Piece
(0) Remove
STK795-820

US $20.00 - 25.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

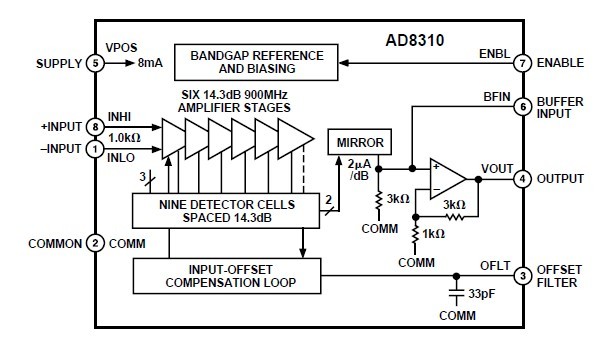

The AD8310ARM is a complete, dc-440 MHz demodulating logarithmic amplifier (log amp) with a very fast voltage-mode output capable of driving up to 25 mA into a grounded load in under 15 ns. The applications of the AD8310ARM include: (1)Conversion of Signal Level to Decibel Form; (2)Transmitter Antenna Power Measurement; (3)Receiver Signal Strength Indication (RSSI); (4)Low-Cost Radar and Sonar Signal-Processing; (5)Network and Spectrum Analyzers; (6)Signal-Level Determination Down to 20 Hz; (7)True-Decibel AC Mode for Multimeters.

Parametrics

AD8310ARM absolute maxing ratings: (1)Supply Voltage VS: 7.5V; (2)Input Power (re 50 Ω), Single-Ended: 18dBm; Differential Drive: 22dBm; (3)Internal Power Dissipation: 200mW; (4)θJA: 200℃/W; (5)Maximum Junction Temperature: 125℃; (6)Operating Temperature Range: –40℃ to +85℃; (7)Storage Temperature Range: –65℃ to +150℃; (8)Lead Temperature Range (Soldering 60 sec): 300℃.

Features

AD8310ARM features: (1)Multistage Demodulating Logarithmic Amplifier; (2)Voltage Output, Rise-Time <15 ns; (3)High-Current Capacity: 25 mA into Grounded RL; (4)95 dB Dynamic Range: –91 dBV to +4 dBV; (5)High-Current Capacity of 2.7 V Min at 8 mA Typ; (6)DC-440 MHz Operation, ±0.4 dB Linearity; (7)Slope of 24 mV/dB, Intercept of –108 dBV; (8)Highly Stable Scaling over Temperature; (9)Fully Differential DC-Coupled Signal Path; (10)100 ns Power-Up Time, 1 μA Sleep Current.
