Product Summary

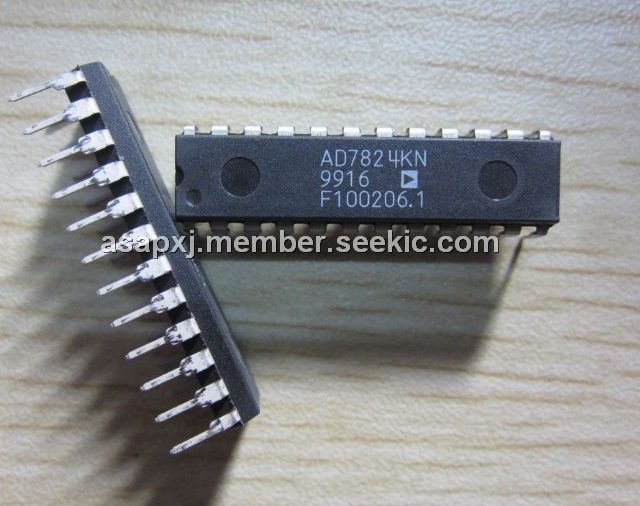

The AD7824KN is a high speed, multi channel, 8-bit ADC with a choice of four multiplexed analog input. A half-flash conversion technique of the AD7824KN gives a fast conversion rate of 2.5 μs per channel, and the parts have a built-in track-and-hold function capable of digitizing full-scale signals of 10 kHz (157 mV/μs slew rate) on all channels. The AD7824KN operates from a single 5 V supply and have an analog input range of 0 V to 5 V, using an external 5 V reference.
Parametrics
AD7824KN absolute maximum ratings: (1) VDD:0 V, 7 V; (2)Digital Input Voltage to GND(RD, CS, A0, A1, and A2): –0.3 V, VDD + 0.3 V; (3)Digital Output Voltage to GND(DB0, DB7, RDY, and INT):–0.3 V, VDD + 0.3 V; (4)VREF (+) to GND : VREF (–), VDD + 0.3 V; (5)VREF (–) to GND: 0 V, VREF (+); (6)Analog Input (Any Channel): –0.3 V, VDD + 0.3 V.
Features
AD7824KN features: (1)4 or 8 Analog Input Channels; (2)Built-In Track-and-Hold Function; (3)10 kHz Signal Handling on Each Channel; (4)Fast Microprocessor Interface; (5)Single 5 V Supply; (6)Low Power: 50 mW; (7)Fast Conversion Rate: 2.5 μs/Channel; (8)Tight Error Specification: 1/2 LSB.

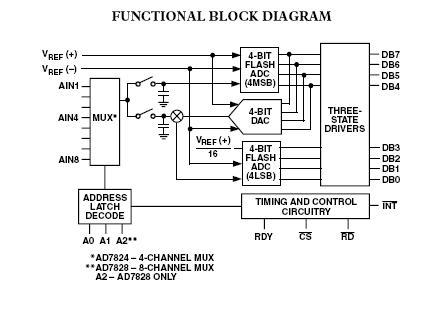

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 AD7824KN |
|
IC ADC 8BIT LC2MOS 4CH HS 24DIP |
Data Sheet |
|
|
||||||||||||||||
|
AD7824KNZ |
|
IC ADC 8BIT LC2MOS 4CH HS 24DIP |
Data Sheet |
|
|
||||||||||||||||
