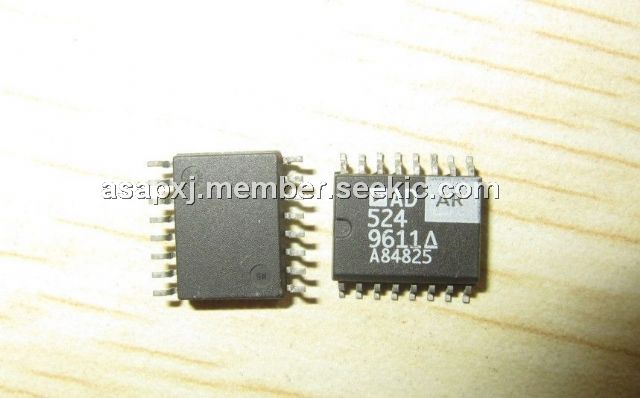

Product Summary

The AD524AR is a precision monolithic instrumentation amplifier. The AD524AR is designed for data acquisition applications requiring high accuracy under worst-case operating conditions. An outstanding combination of high linearity, high common-mode rejection, low offset voltage drift, and low noise makes the AD524AR suitable for use in many data acquisition systems.

Parametrics

AD524AR absolute maximum ratings: (1)Supply Voltage:±18 V; (2)Internal Power Dissipation:450 mW; (3)Input Voltage1(Either Input Simultaneously) |VIN| + |VS|:＜36 V; (4)Output Short-Circuit Duration: Indefinite; (5)Storage Temperature Range:–65℃to +125℃; (6)Operating Temperature Range:–25℃ to +85℃; (7)Lead Temperature (Soldering, 60 sec):+300℃.

Features

AD524AR features: (1)Low noise: 0.3μV p-p at 0.1 Hz to 10 Hz; (2)Low nonlinearity: 0.003% (G = 1); (3)High CMRR: 120 dB (G = 1000) Low offset voltage: 50μV; (4)Low offset voltage drift: 0.5μV/℃; (5)Gain bandwidth product: 25 MHz; (6)Pin programmable gains of 1, 10, 100, 1000; (7)Input protection, power-on/power-off; (8)No external components required; (9)Internally compensated; (10)MIL-STD-883B and chips available; (11)16-lead ceramic DIP and SOIC packages and 20-terminal; (12)leadless chip carrier available; (13) Available in tape and reel in accordance with EIA-481A standard; (14) Standard military drawing also available.

Diagrams

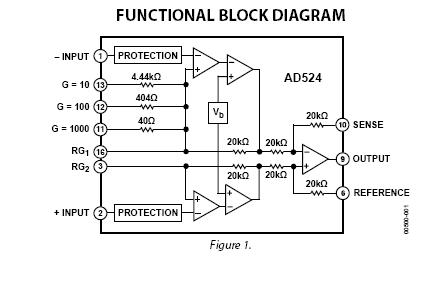

AD524AR block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
AD524AR-16
AD524AR-16

IC AMP INST 1MHZ PREC LN 16SOIC
Data Sheet
0-47: $9.54
AD524AR-16-REEL
AD524AR-16-REEL

IC AMP INST 1MHZ PREC LN 16SOIC
Data Sheet
0-1000: $6.88
AD524AR-16-REEL7
AD524AR-16-REEL7
Analog Devices Inc
IC INSTR AMP SNGL BI/JFET 16SOIC
Data Sheet
Negotiable
AD524ARZ-16
AD524ARZ-16

IC AMP INST 1MHZ PREC LN 16SOIC
Data Sheet
0-1: $10.04
1-10: $9.13
10-100: $7.76
100-250: $7.07
250-500: $6.62
500-1000: $6.08
AD524ARZ-16-REEL7
AD524ARZ-16-REEL7

IC AMP INST 1MHZ PREC LN 16SOIC
Data Sheet
0-400: $7.07
