74VCX163245MTD

dual supply, 16-bit translating transceiver, TSSOP, -0.5V to 4.6V, ±100 mA, 74VCX163245MTD

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.00~5.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.00~5.00

PartNumber:: 74VCX163245MTD

Brand:: Fairchild Semiconductor - Fairchild | Pack: TSSOP | D/C: 10+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Ella Wu's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-07-22

From Other Seller

Part Number:74VCX163245MTD
US $0.00 - 5.00
ECA1HHG220

US $2.00 - 10.00 / Piece
(0) Remove
MOC3063

US $0.32 - 1.50 / Piece
(0) Remove
Quantity:

piece

Product Summary

The 74VCX163245MTD is a dual supply, 16-bit translating transceiver. The 74VCX163245MTD is designed for 2 way asynchronous communication between busses at different supply voltages by providing true signal translation. The 74VCX163245MTD consists of VCCA, which is a higher potential rail operating at 2.3V to 3.6V and VCCB, which is the lower potential rail operating at 1.65V to 2.7V. (VCCB must be less than or equal to VCCA for proper device operation). This dual supply design allows for translation from 1.8V to 2.5V busses to busses at a higher potential, up to 3.3V.

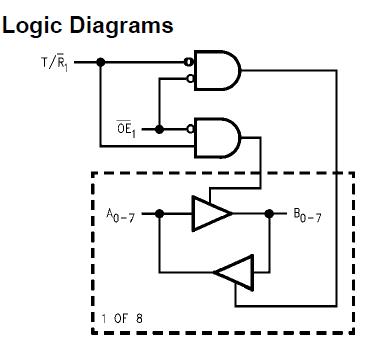

Parametrics

74VCX163245MTD absolute maximum ratings: (1)Supply Voltage, VCCA: -0.5V to 4.6V; VCCB 0.5V to VCCA; (2)DC Input Voltage (VI): -0.5V to 4.6V; (3)DC Output Voltage (VI/O): -0.5V to 4.6V; (4)Outputs Active: -0.5V to VCCA+0.5V; (5)DC Input Diode Current (IIK) VI≤0V: 50 mA; (6)DC Output Diode Current (IOK), VO <0V: -50 mA; VO>VCC: 50 mA; (7)DC Output Source/Sink Current (IOH/IOL): ±50 mA; (8)DC VCC or Ground Current: ±100 mA; (9)Supply Pin (ICC or Ground), Storage Temperature (TSTG): -65 to 150℃.

Features

74VCX163245MTD features: (1)Bidirectional interface between busses ranging from 1.65V to 3.6V; (2)Supports Live Insertion and Withdrawal; (3)Static Drive (IOH/IOL): ±24 mA @ 3.0V VCC; ±18 mA @ 2.3V VCC; ±6 mA @ 1.65V VCC; (4)Uses patented Quiet Series noise/EMI reduction circuitry; (5)Functionally compatible with 74 series 16245; (6)Latchup performance exceeds 300 mA; (7)ESD performance: Human Body Model 2000V; Machine model≥200V; (8)Also packaged in plastic Fine-Pitch Ball Grid Array (FBGA).
