Product Summary
The 74LS11 is a triple 3-input and gate.
Parametrics
74LS11 absolute maximum ratings: (1)VCC Supply Voltage: 4.75 to 5.25V, 5.0V typ; (2)TA, Operating Ambient Temperature Range: 0 to 70℃; 25℃ typ; (3)IOH, Output Current, High: –0.4 mA; (4)IOL, Output Current, Low: 8.0mA.
Features
74LS11 features: (1)tPLH, Turn-Off Delay, Input to Output: 8.0ns typ, 15 ns max; (2)tPHL, Turn-On Delay, Input to Output: 10ns typ, 20 ns max.

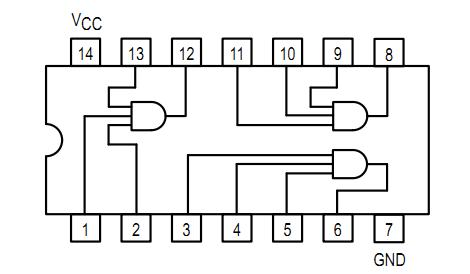

Diagrams
