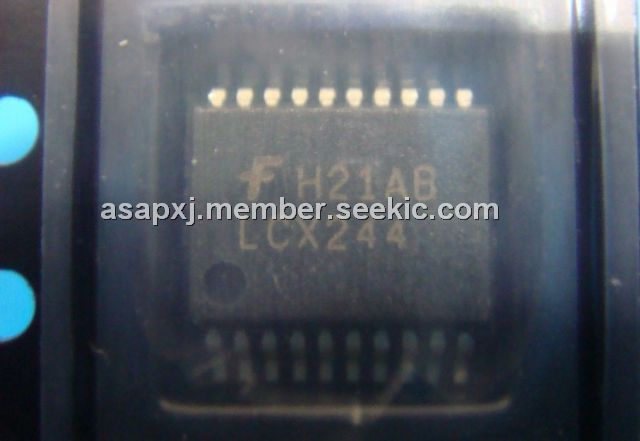

The 74LCX244MSAX is a low voltage buffer/line driver with 5V tolerant inputs and outputs. It contains eight non-inverting buffers with 3-STATE outputs. The device may be employed as a memory address driver, clock driver and bus-oriented transmitter/receiver. The 74LCX244MSAX is designed for low voltage (2.5V or 3.3V) VCC applications with capability of interfacing to a 5V signal environment.
Parametrics
74LCX244MSAX absolute maximum ratings: (1)VCC Supply Voltage: -0.5 to +7.0 V; (2)VI DC Input Voltage: -0.5 to +7.0 V; (3)On the condition of VI < GND, IIK DC Input Diode Current: -50 mA; (4)IO DC Output Source/Sink Current: ±50 mA; (5)ICC DC Supply Current per Supply Pin: ±100 mA; (6)IGND DC Ground Current per Ground Pin: ±100 mA; (7)TSTG Storage Temperature: -65 to +150 ℃.
Features
74LCX244MSAX features: (1)5V tolerant inputs and outputs; (2)2.3V–3.6V VCC specifications provided; (3)6.5 ns tPD max (VCC=3.3V), 10 μA ICC max; (4)Power down high impedance inputs and outputs; (5)Supports live insertion/withdrawal; (6)±24 mA output drive (VCC=3.0V); (7)Implements patented noise/EMI reduction circuitry; (8)Latch-up performance exceeds JEDEC 78 conditions; (9)ESD performance: Human body model > 2000V; Machine model > 200V; (10)Leadless Pb-Free DQFN package.

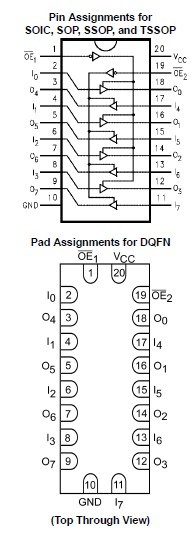

Diagrams
