Product Summary

The 50WQ10FN is a surface mount Schottky rectifier. It has been designed for applications requiring low forward drop and small foot prints on PC board. Typical applications of 50WQ10FN are in disk drives, switching power supplies, converters, free-wheeling diodes, battery charging, and reverse battery protection.

Parametrics

50WQ10FN absolute maximum ratings: (1)IF(AV) Max. Average Forward Current: 5.5 A; (2)IFSM Max. Peak One Cycle Non-Repetitive 330 A; (3)EAS Non-Repetitive Avalanche Energy: 6.0 mJ; (4)IAR Repetitive Avalanche Current: 0.5 A.

Features

50WQ10FN features: (1)Popular D-PAK outline; (2)Small foot print, surface moutable; (3)Low forward voltage drop; (4)High frequency operation; (5)Guard ring for enhanced ruggedness and long term reliability.

Diagrams

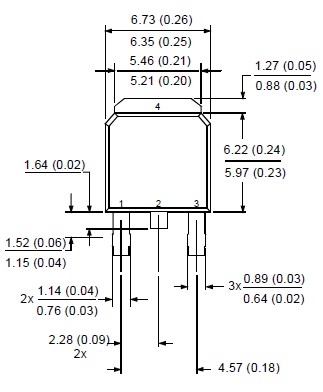

50WQ10FN dimensions

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
50WQ10FN
50WQ10FN
Vishay Semiconductors
Schottky (Diodes & Rectifiers) 5.5 Amp 100 Volt
Data Sheet
Negotiable
50WQ10FNPBF
50WQ10FNPBF

DIODE SCHKOTTKY 100V 5.5A D-PAK
Data Sheet
0-1: $1.07
1-10: $0.96
10-25: $0.86
25-100: $0.77
100-250: $0.69
250-500: $0.60
500-1000: $0.50
1000-2500: $0.46
2500-5000: $0.45
