Product Summary

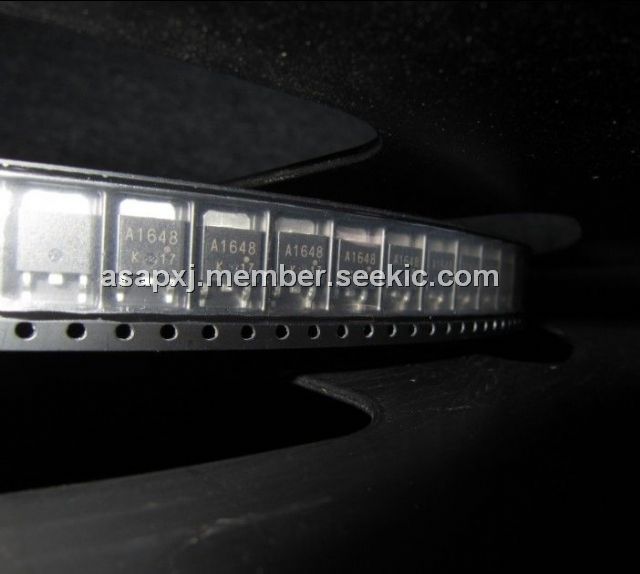

The 2SA1648 is a PNP silicon epitaxial transistor developed for high speed switching and features a very low collector-to-emitter saturation voltage. The 2SA1648 is ideal for use in switching regulators, DC/DC converters, motor drivers, solenoid drivers, and other low-voltage power supply devices, as well as for high-current switching.
Parametrics
2SA1648 absolute maximum ratings: (1)Collector to Base Voltage VCBO: -100 V; (2)Collector to Emitter Voltage VCEO: -60 V; (3)Emitter to Base Voltage VEBO: -7.0 V; (4)Collector Current (DC) IC(DC): -5.0 A; (5)Collector Current (pulse) IC(pulse): -10 A; (6)Base Current (DC) IB(DC): -2.5 A; (7)Total Power Dissipation PT (TC = 25℃): 18 W; (8)Total Power Dissipation PT (TA = 25℃): 1.0, 2.0 W; (9)Junction Temperature Tj: 150 ℃; (10)Storage Temperature Tstg: -55 to +150 ℃.
Features
2SA1648 features: (1)Available for high-current control in small dimension; (2)Z type is a lead processed product and is deal for mounting a hybrid IC.; (3)Mold package that does not require an insulating board or insulation bushing; (4)Low collector saturation voltage: VCE(sat)1 = -0.3 V MAX. (IC = -3.0 A); (5)Fast switching speed: tf = 0.3 μs MAX. (IC = -3.0 A); (6)High DC current gain and excellent linearity.
