Product Summary

The 24N60C3 is a CoolMOS power transistor.

Parametrics

24N60C3 absolute maximum ratings: (1)On the condition of TC=25℃, Continuous drain current ID: 24.3A; (2)On the condition of TC=100℃, ID: 15.4A; (3)On the condition of TC=25℃, Pulsed drain current ID,pulse: 72.9A; (4)On the conditions of EAS ID=12.1A, VDD=50V, Avalanche energy, single pulse: 780mJ; (5)On the conditions of ID=24.3A, VDD=50V, Avalanche energy, repetitive tAR EAR: 1.5mJ; (6)Avalanche current, repetitive t AR I AR: 24.3A; (7)Operating and storage temperature Tj, Tstg: -55 to 150℃.

Features

24N60C3 features: (1)New revolutionary high voltage technology; (2)Ultra low gate charge; (3)Periodic avalanche rated; (4)Extreme dv /dt rated; (5)Ultra low effective capacitances; (6)Improved transconductance.

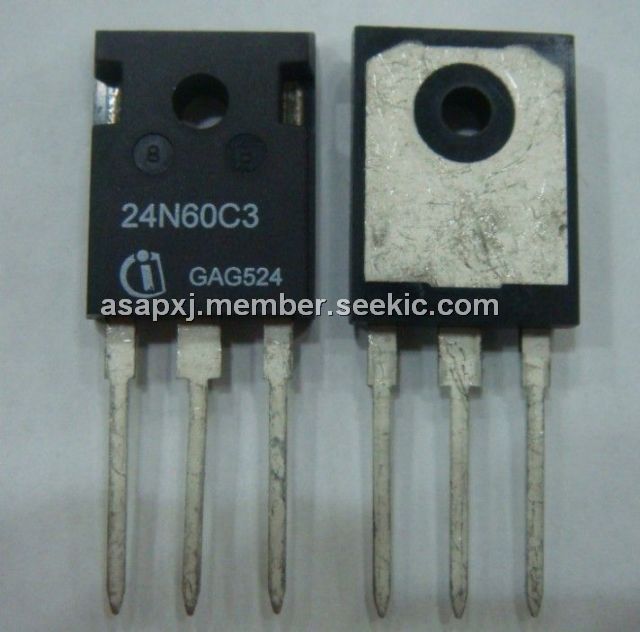

Diagrams
