Product Summary

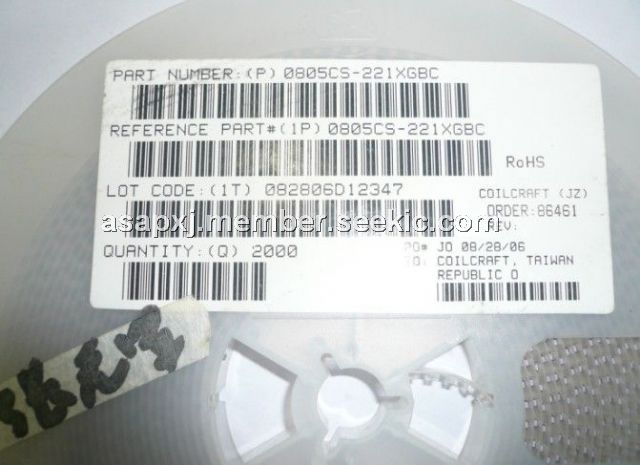

The 0805CS-221XGBC is the chip inductor.
Parametrics
0805CS-221XGBC absolute maximum ratings: (1)Weight: 10.2 – 11.6 mg; (2)Ambient temperature: –40 to +125℃ with Irms current, +125 to +140℃ with derated current; (4)Storage temperature Component: –40 to +140℃; (5)Packaging: –40 to +80℃; (6) Inductance: 220 nH @ 100 MHz.
Features
0805CS-221XGBC features: (1)Exceptional Q values, even at high frequencies; (2)Tight tolerances – 2% for most; 1% for some values; (3)Wirewound construction provides the highest SRFs in 0805 size.
Diagrams
 |
