Product Summary
The XCR3032XL-7CS48C is a 3.3V, 32-macrocell CPLD targeted at power sensitive designs that require leading edge programmable logic solutions. A total of two function blocks provide 750 usable gates. Pin-to-pin propagation delays of the XCR3032XL-7CS48C are 5.0 ns with a maximum system frequency of 200 MHz.
Parametrics
XCR3032XL-7CS48C specifications: (1)VOH Output High voltage: 2.4 V; (2)VOL Output Low voltage: 0.4 V; (3)IIL Input leakage current: 10 μA; (4)IIH I/O High-Z leakage current: –10 to 10 μA; (5)ICCSB Standby current: 100 μA; (6)ICC Dynamic current: 0.25 mA; (7)CIN Input pin capacitance: 8 pF; (8)CCLK Clock input capacitance: 12 pF; (9)CI/O I/O pin capacitance: 10 pF.
Features
XCR3032XL-7CS48C features: (1)Lowest power 32 macrocell CPLD; (2)5.0 ns pin-to-pin logic delays; (3)System frequencies up to 200 MHz; (4)32 macrocells with 750 usable gates; (5)Available in small footprint packages; (6)Optimized for 3.3V systems; (7)Advanced system features; (8)Fast ISP programming times; (9)Port Enable pin for dual function of JTAG ISP pins; (10)2.7V to 3.6V supply voltage at industrial temperature range; (11)Programmable slew rate control per macrocell; (12)Security bit prevents unauthorized access.

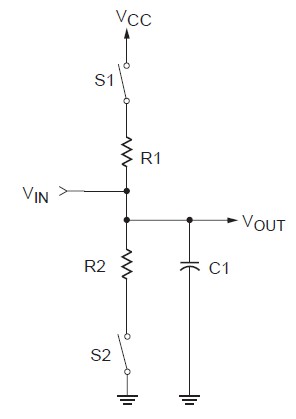

Diagrams
