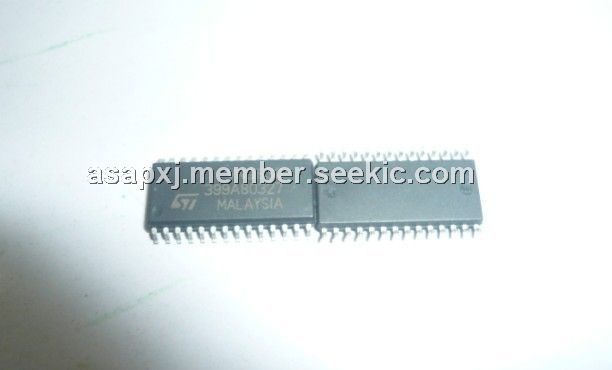

VNQ830

quad channel high side driver, SSOP, very low stand-by current, reverse battery protection, 36V

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.00~5.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.00~5.00

PartNumber:: VNQ830

Brand:: STMicroelectronics - ST | Pack: SSOP | D/C: 10+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Ella Wu's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-11-29

From Other Seller

Part Number:VNQ830
US $0.00 - 5.00
EKY-160ELL121MF11D

US $0.10 - 1.00 / Piece
(0) Remove
ad7716ap

US $1.13 - 1.13 / Piece
(0) Remove
Quantity:

piece

Product Summary

The VNQ830 is a quad channel high side driver. It is intended for driving any type of multiple loads with one side connected to ground. Active VCC pin voltage clamp protects the VNQ830 against low energy spikes. Active current limitation combined with thermal shutdown and automatic restart protects the device against overload. The VNQ830 detects open load condition both in on and off state. Output shorted to VCC is detected in the off state.

Parametrics

VNQ830 absolute maximum ratings: (1)DC Supply Voltage:41 V; (2)Reverse DC Supply Voltage:- 0.3 V; (3)DC Reverse Ground Pin Current:- 200 mA; (4)DC Output Current:Internally Limited; (5)Reverse DC Output Current:- 6 A; (6)DC Input Current:±10 mA; (7)DC Status Current:±10 mA; (8)Power dissipation (per island) at Tlead=25℃:6.25 W; (9)Junction Operating Temperature:Internally Limited; (10)Storage Temperature:- 55 to 150℃.
